StateView

StateView shows exactly one of several named branches, chosen by a string. It is the declarative form of the IsVisible ladder (MAUI) or the @if/else if/else chain (Blazor) that every screen with more than one mode grows — bind CurrentState to a view-model property and the matching StateViewState is what is on screen.

•
•

Frameworks

.NET MAUI

Blazor

Screenshots

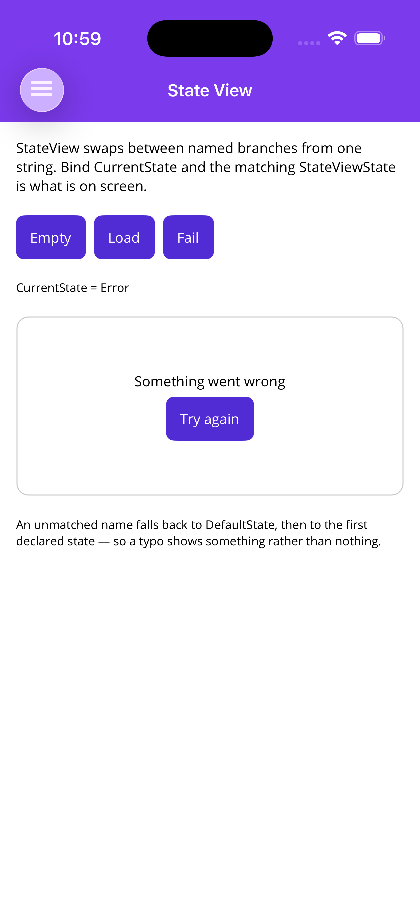

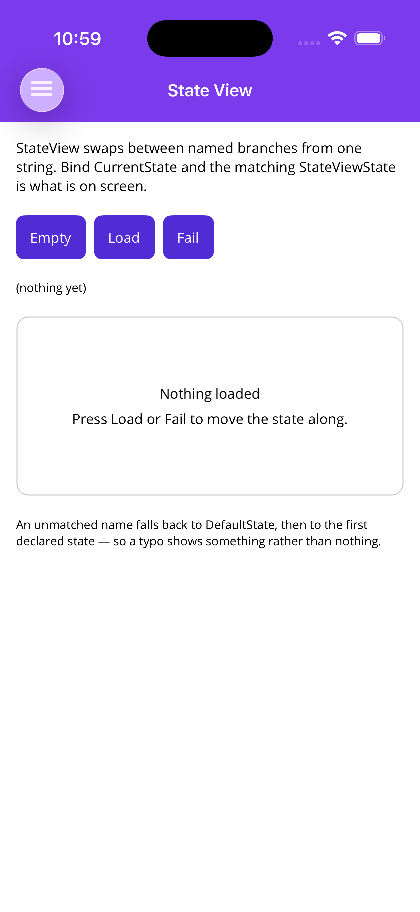

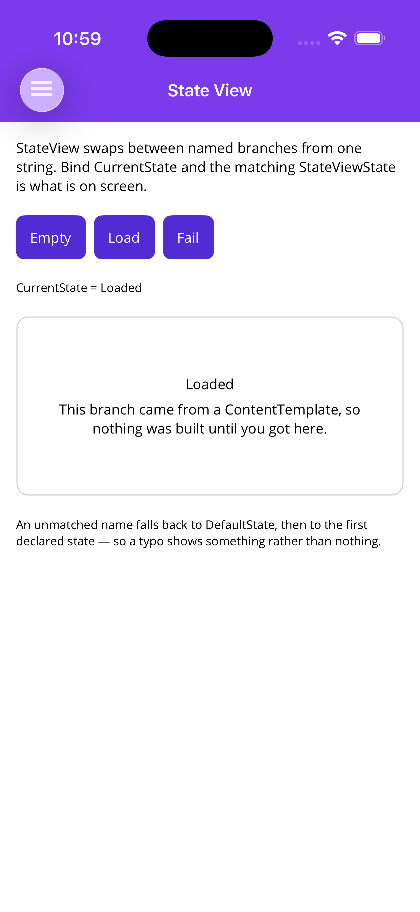

MAUI (iOS)

Empty	Loaded	Error

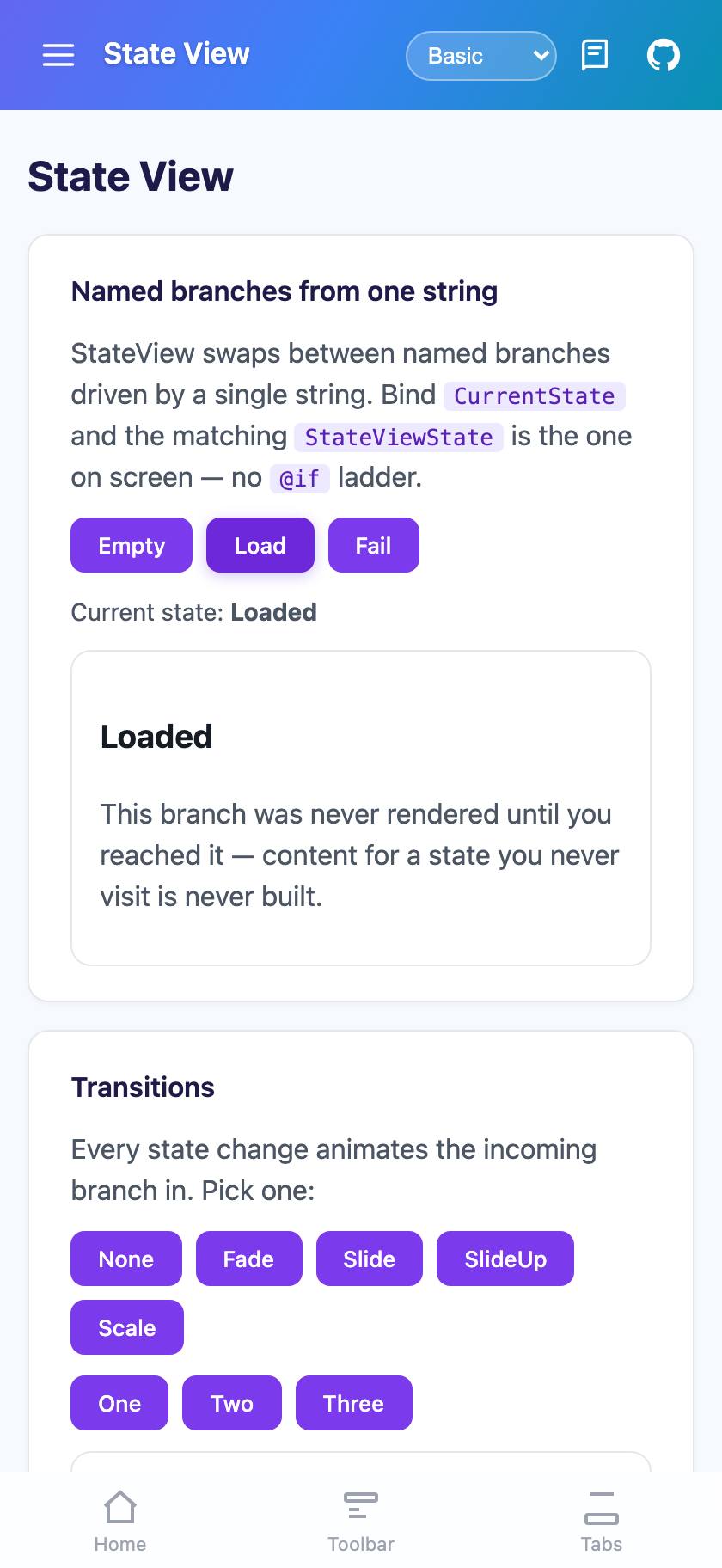

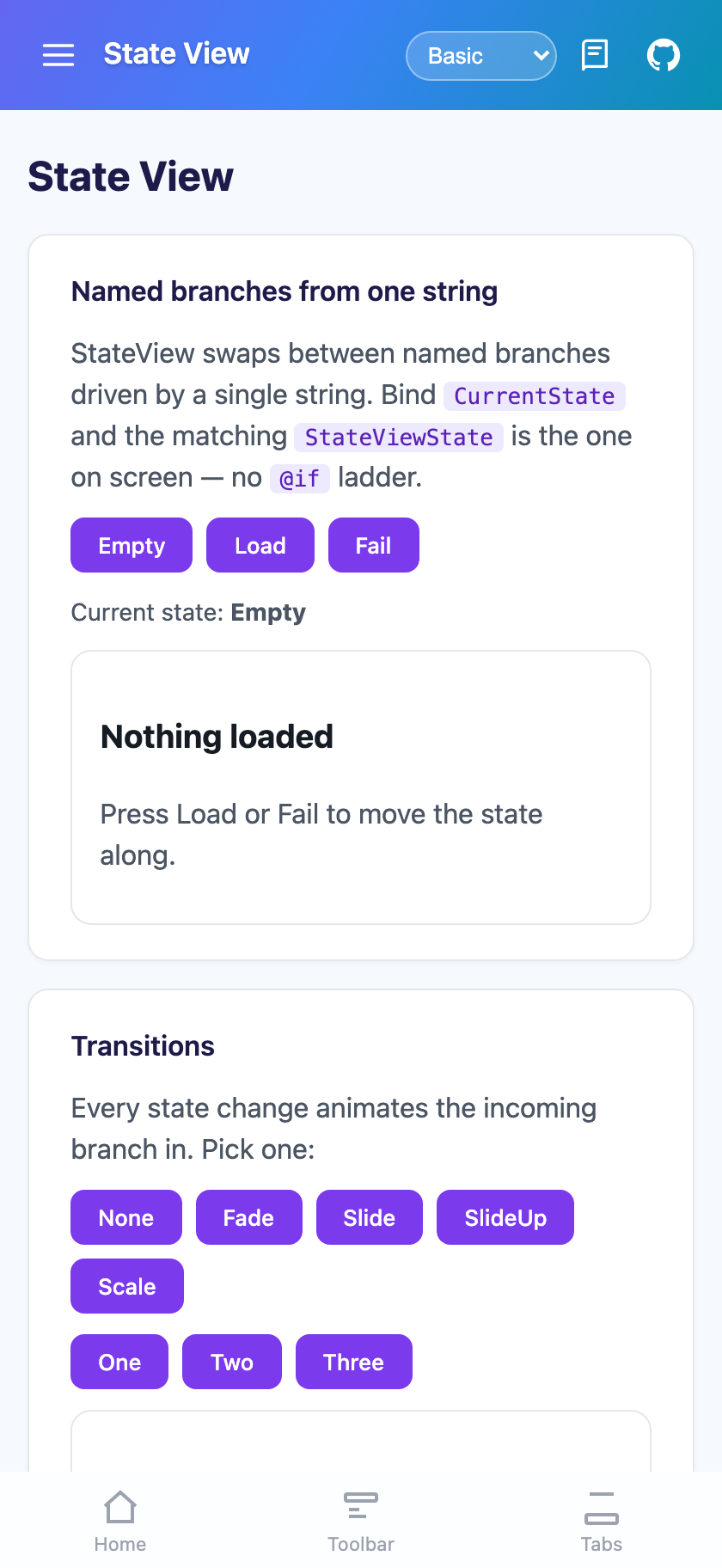

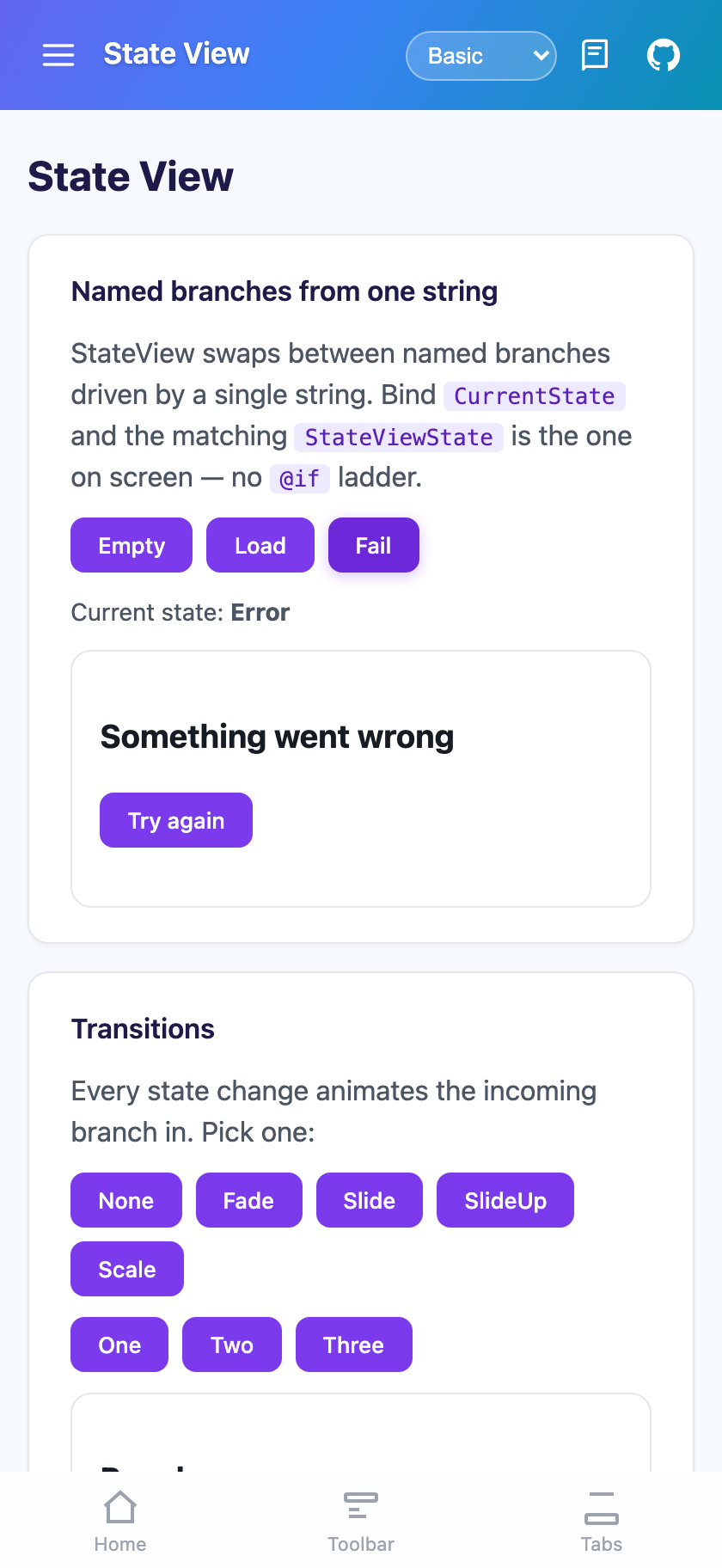

Blazor

Empty	Loaded	Error

Features

• One string drives which branch is visible — no visibility ladder to keep in sync
• Ordinal, case-insensitive matching, with a fallback chain (DefaultState, then the first declared state) so an unmatched name shows something rather than a blank rectangle
• Transitions: Fade, Slide (direction taken from the move), SlideLeft/Right/Up/Down, Scale, None
• Lazy branches — a ContentTemplate (MAUI) is built the first time its state is reached and then cached; on Blazor a StateViewState hands its ChildContent to the host, so an unreached branch is never built
• CacheContent="False" rebuilds — and therefore resets — a templated branch on every visit
• Only one branch is ever hosted, so the branch you left keeps no bindings or timers alive underneath

Quick Start

MAUI

States is the ContentProperty, so the states are written as direct children. Each StateViewState has Content as its content property, so a single child view needs no wrapper element.

<shiny:StateView xmlns:shiny="http://shiny.net/maui/controls"
                 CurrentState="{Binding CurrentState}"
                 Transition="Slide">

    <shiny:StateViewState Name="Empty">
        <Label Text="Nothing loaded yet" />
    </shiny:StateViewState>

    <shiny:StateViewState Name="Loading">
        <ActivityIndicator IsRunning="True" />
    </shiny:StateViewState>

    <shiny:StateViewState Name="Loaded">
        <local:ReportView />
    </shiny:StateViewState>

    <shiny:StateViewState Name="Error">
        <VerticalStackLayout>
            <Label Text="Something went wrong" />
            <Button Text="Try again" Command="{Binding RetryCommand}" />
        </VerticalStackLayout>
    </shiny:StateViewState>
</shiny:StateView>

[ObservableProperty] string currentState = "Empty";

[RelayCommand]
async Task Load()
{
    this.CurrentState = "Loading";
    try
    {
        await this.LoadReportAsync();
        this.CurrentState = "Loaded";
    }
    catch
    {
        this.CurrentState = "Error";
    }
}

MAUI allows a single view per state — wrap several children in a layout.

Blazor

<StateView @bind-CurrentState="state" Transition="StateTransition.Slide">
    <States>
        <StateViewState Name="Empty"><p>Nothing loaded yet</p></StateViewState>
        <StateViewState Name="Loading"><ProgressBar IsIndeterminate="true" /></StateViewState>
        <StateViewState Name="Loaded"><Report /></StateViewState>
        <StateViewState Name="Error">
            <p>Something went wrong</p>
            <button @onclick="LoadAsync">Try again</button>
        </StateViewState>
    </States>
</StateView>

@code {
    string state = "Empty";

    async Task LoadAsync()
    {
        state = "Loading";
        try
        {
            await LoadReportAsync();
            state = "Loaded";
        }
        catch
        {
            state = "Error";
        }
    }
}

ChildContent is accepted as an alias for States, so the wrapper tag can be dropped when nothing else is being passed.

Lazy branches

A branch that is expensive, or rarely reached, should not be built on the way past. On MAUI that is what ContentTemplate is for — it is built the first time its state is shown and then cached:

<shiny:StateViewState Name="Loaded">
    <shiny:StateViewState.ContentTemplate>
        <DataTemplate>
            <local:ExpensiveReportView />
        </DataTemplate>
    </shiny:StateViewState.ContentTemplate>
</shiny:StateViewState>

ContentTemplate wins over Content when both are set. Caching is what keeps a return visit instant and preserves entry text and scroll position; set CacheContent="False" on the StateView when entering a branch should reset it instead.

On Blazor this is free: a StateViewState renders nothing itself and hands its ChildContent to the state view, which renders it only while that state is current.

Transitions

Value	Behaviour
None	Swap instantly
Fade	Fade (MAUI cross-fades the two hosts)
Slide	Direction taken from the move — a state later in the markup enters from the right, an earlier one from the left
SlideLeft	Always as if moving forwards
SlideRight	Always as if moving backwards
SlideUp / SlideDown	Vertical
Scale	Fade while growing into place

TransitionDuration is in milliseconds (uint on MAUI, int on Blazor); zero swaps instantly. MAUI also takes a TransitionEasing.

Blazor animates the incoming branch only. Rendering the outgoing one as well would give a true cross-fade, but it would also mean every component inside a branch existing twice for the duration of the transition — duplicated timers, duplicated JS interop, duplicated form state. Both hosts honour prefers-reduced-motion on Blazor.

Fallback

CurrentState is matched against StateViewState.Name ordinally and case-insensitively. When nothing matches, the state view falls back in order:

1. DefaultState, if it names a declared state
2. the first declared state
3. EmptyView (MAUI) / EmptyContent (Blazor), when there are no states at all

That chain is deliberate — a mistyped state name showing the wrong branch is far easier to notice and fix than one showing an empty rectangle.

Properties

Property	MAUI	Blazor	Default	Description
CurrentState	two-way	@bind-CurrentState	null	The state to show
DefaultState	✅	✅	null	Fallback when CurrentState is empty or unmatched
Transition	✅	✅	Fade	How the swap animates
TransitionDuration	uint	int	200	Milliseconds
TransitionEasing	✅	—	CubicOut	MAUI only
CacheContent	✅	—	true	Keep a ContentTemplate-built view alive after its state is left
EmptyView / EmptyContent	View	RenderFragment	null	Shown when nothing matches at all
States	IList<StateViewState>	RenderFragment	—	The branches
StateChangedCommand	✅	—	null	Invoked with the new state name
CurrentStateView / Current	read-only	read-only	—	The state on screen
CurrentStateIndex / CurrentIndex	read-only	read-only	-1	Index among the declared states

Methods — GoTo(string) and GoTo(int) on both hosts; both return false rather than throwing when the target does not exist.

Events — StateChanged (MAUI, carries PreviousState and CurrentState) / CurrentStateChanged (Blazor).

StateViewState

Property	MAUI	Blazor	Description
Name	✅	✅	What CurrentState is matched against
Content	View (content property)	—	Built eagerly with the rest of the markup
ContentTemplate	DataTemplate	—	Built on first show, then cached; wins over Content
ChildContent	—	✅	Rendered by the host while this is the current state

Related

• Wizard — a multi-step flow built on the same model
• SkeletonView — for the loading state of a single content region
