Toolbar & TabBar (Blazor Only)

Two screen-docked navigation chromes for Blazor. ShinyToolbar docks to the top or bottom of its scroll container as an action bar (icons with links/actions, a title, and custom content slots). ShinyTabBar is a mobile-style tab bar pinned to the bottom of the viewport with a selected state, optional filled active icons, and badges. Both support a frosted-glass toggle backed by CSS backdrop-filter.

The top toolbar uses position: sticky, so it reserves its own height — content never starts underneath it — yet page content scrolls under it as you scroll, producing the classic translucent-header effect. The tab bar uses position: fixed, so it stays pinned regardless of scroll.

•

Frameworks

Blazor

Note

ShinyToolbar and ShinyTabBar are only available in the Blazor package. On MAUI, use Shell tab bars / ToolbarItems, or FloatingPanel for docked overlays.

Setup

@using Shiny.Blazor.Controls

No service registration is required — both are plain Razor components.

ShinyToolbar

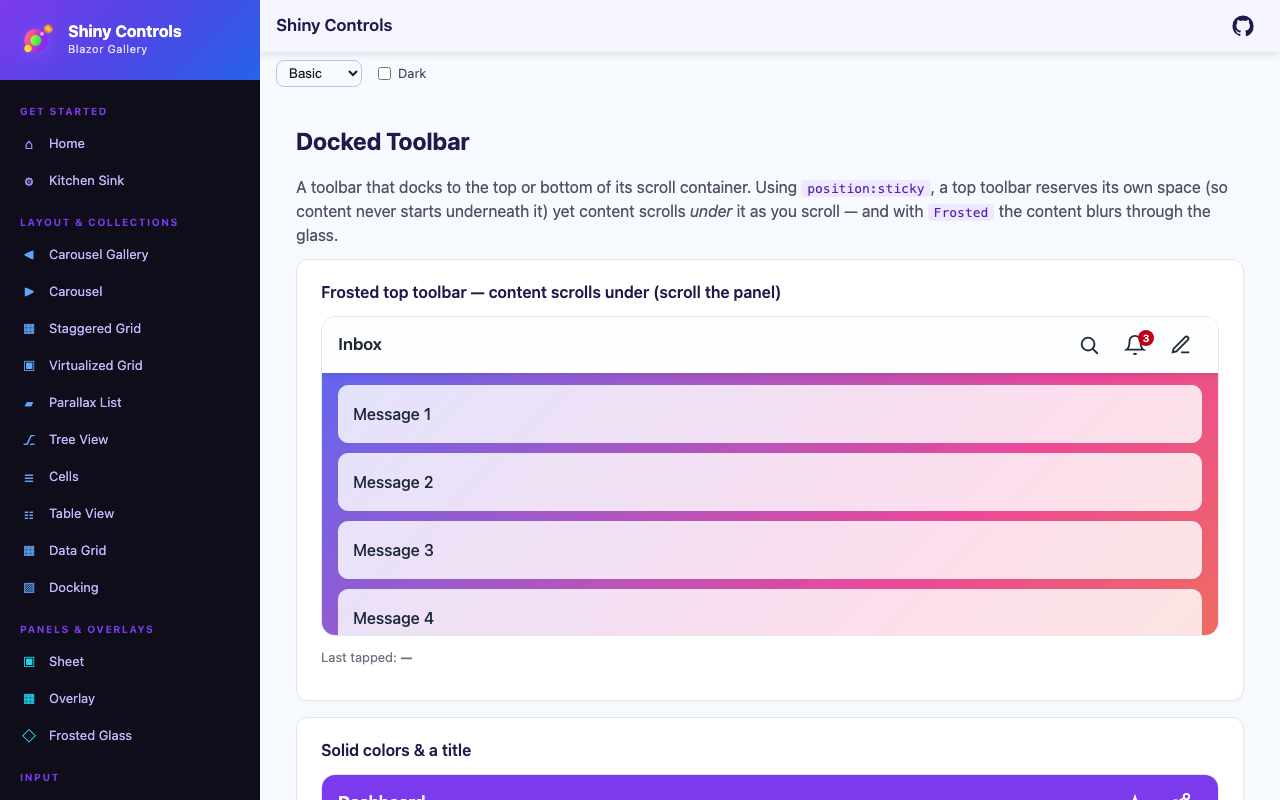

Frosted top toolbar — content scrolls under

position: sticky reserves the bar’s height (content starts below it) and content slides under it as you scroll. With Frosted, the content blurs through the glass.

<div style="height: 320px; overflow-y: auto;">
    <ShinyToolbar Dock="ToolbarDock.Top"
                  Frosted="true"
                  Title="Inbox"
                  Items="@items"
                  ItemClicked="OnItemClicked" />

    <!-- tall scrollable content slides under the frosted header -->
    @for (var i = 1; i <= 30; i++)
    {
        <p>Message @i</p>
    }
</div>

@code {
    List<ToolbarItem> items = new()
    {
        new() { Icon = "<svg viewBox='0 0 24 24'>…search…</svg>", Text = "Search" },
        new() { Icon = "<svg viewBox='0 0 24 24'>…bell…</svg>", Text = "Alerts", Badge = "3" },
        new() { Icon = "/icons/compose.png", Text = "Compose", Href = "/compose" }
    };

    void OnItemClicked(ToolbarItem item) { /* … */ }
}

Tip

Icons accept inline SVG/HTML markup, an emoji/glyph, or an image URL (.png / .svg / http… / /…). Items with an Href render as a link (and still raise ItemClicked); items without one render as a button.

Solid color toolbar with a title

<ShinyToolbar Dock="ToolbarDock.Top"
              BackgroundColor="#7C3AED"
              TextColor="#FFFFFF"
              Title="Dashboard"
              Items="@items" />

Custom content slots

Use StartContent, ChildContent (center), and EndContent for fully custom layouts instead of Title + Items.

<ShinyToolbar Dock="ToolbarDock.Top" BackgroundColor="#0F172A" TextColor="#E2E8F0">
    <StartContent>
        <button @onclick="GoBack">&#x2190;</button>
        <strong>Project Atlas</strong>
    </StartContent>
    <EndContent>
        <Pill Text="Live" PillColor="#10B981" />
    </EndContent>
</ShinyToolbar>

Bottom-docked action bar

<ShinyToolbar Dock="ToolbarDock.Bottom"
              ShowItemLabels="true"
              Items="@actions"
              ItemClicked="OnItemClicked" />

ShinyToolbar properties

Property	Type	Default	Description
Dock	ToolbarDock	Top	Docks to the Top or Bottom edge
Sticky	bool	true	position:sticky (content scrolls under); set false for a normal in-flow bar
Title	string?	null	Convenience leading title text (used when StartContent is not set)
Items	List<ToolbarItem>?	null	Trailing action/link items (used when EndContent is not set)
StartContent	RenderFragment?	null	Custom leading content
ChildContent	RenderFragment?	null	Custom center content
EndContent	RenderFragment?	null	Custom trailing content
BackgroundColor	string	#FFFFFF	Solid fill (ignored when Frosted)
TextColor	string	#1F2937	Foreground color
Height	double	56	Bar height (min-height) in pixels
IconSize	double	22	Item icon size in pixels
ShowItemLabels	bool	false	Show each item’s Text beneath its icon
Frosted	bool	false	Frosted glass via backdrop-filter
BlurRadius	double	20	Blur amount in pixels when Frosted
TintColor	string	rgba(255,255,255,0.7)	Translucent fill when Frosted
HasShadow	bool	true	Edge shadow (direction follows Dock)
BorderColor	string?	null	Hairline color on the docked edge
BorderThickness	double	0	Hairline thickness in pixels
SafeArea	bool	true	Adds env(safe-area-inset-*) padding on the docked edge
ZIndex	int	100	Stacking order
CssClass	string?	null	Extra root CSS class
Style	string?	null	Extra inline style appended to the root

Events: ItemClicked — fires the ToolbarItem that was tapped.

ToolbarItem properties

Property	Type	Default	Description
Icon	string?	null	Inline SVG/HTML, a glyph/emoji, or an image URL
Text	string?	null	Label (shown when ShowItemLabels is true)
Href	string?	null	When set, the item renders as a link to this URL
Target	string?	null	Anchor target (e.g. _blank); only used with Href
Badge	string?	null	Badge text shown on the item (e.g. a count)
IconColor	string?	null	Overrides the toolbar foreground for this item
IsDisabled	bool	false	Dims the item and blocks clicks
Tag	object?	null	Arbitrary payload returned via ItemClicked

ShinyTabBar

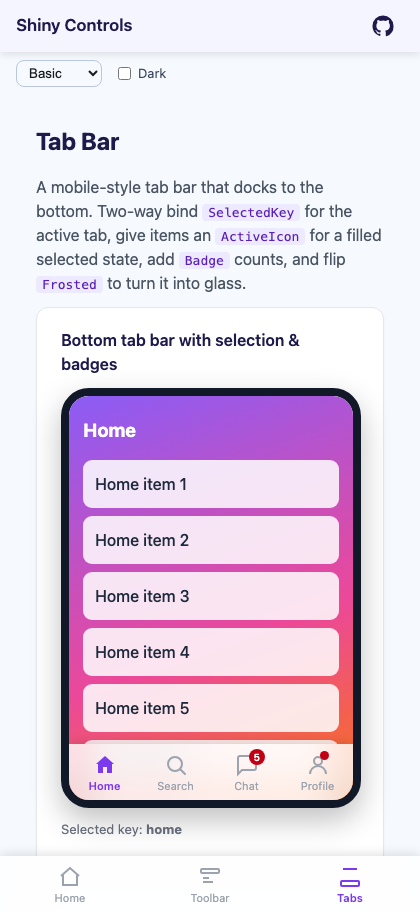

Bottom tab bar with selection and badges

Two-way bind SelectedKey for the active tab. Give an item an ActiveIcon for a filled selected state, and a Badge (use "" for a plain dot).

<ShinyTabBar Items="@tabs"
             @bind-SelectedKey="selected"
             ActiveColor="#7C3AED"
             Frosted="true" />

@code {
    string? selected = "home";

    List<TabBarItem> tabs = new()
    {
        new() { Key = "home", Label = "Home", Icon = HomeOutline, ActiveIcon = HomeFilled },
        new() { Key = "search", Label = "Search", Icon = SearchIcon },
        new() { Key = "chat", Label = "Chat", Icon = ChatIcon, Badge = "5" },
        new() { Key = "profile", Label = "Profile", Icon = ProfileIcon, Href = "/profile" }
    };
}

Tip

When an item has an Href, selecting it also navigates there. To highlight the active tab from the current route, bind SelectedKey to a value derived from NavigationManager instead of (or in addition to) @bind-SelectedKey.

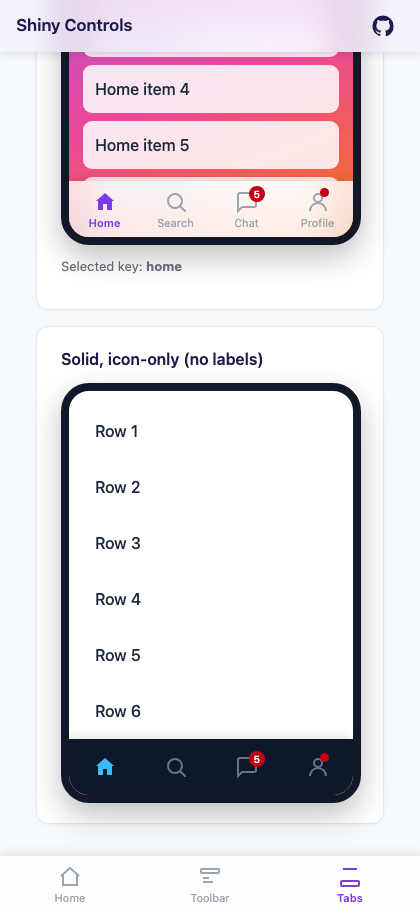

Icon-only, solid background

<ShinyTabBar Items="@tabs"
             @bind-SelectedKey="selected"
             ShowLabels="false"
             BackgroundColor="#0F172A"
             ActiveColor="#38BDF8"
             InactiveColor="#64748B" />

ShinyTabBar properties

Property	Type	Default	Description
Items	List<TabBarItem>?	null	The tabs
SelectedKey	string?	null	Two-way bindable active tab Key (pair with SelectedKeyChanged)
SelectedKeyChanged	EventCallback<string?>	—	Fires when the selected tab changes
Dock	ToolbarDock	Bottom	Docks to the Bottom (default) or Top edge
Fixed	bool	true	position:fixed (always pinned); set false to use sticky inside a container
BackgroundColor	string	#FFFFFF	Solid fill (ignored when Frosted)
ActiveColor	string	#2196F3	Selected tab color
InactiveColor	string	#9CA3AF	Unselected tab color
ShowLabels	bool	true	Show each tab’s Label beneath its icon
Height	double	56	Bar height (min-height) in pixels
IconSize	double	24	Tab icon size in pixels
Frosted	bool	false	Frosted glass via backdrop-filter
BlurRadius	double	20	Blur amount in pixels when Frosted
TintColor	string	rgba(255,255,255,0.7)	Translucent fill when Frosted
HasShadow	bool	true	Edge shadow (direction follows Dock)
BorderColor	string?	null	Hairline color on the docked edge
BorderThickness	double	0	Hairline thickness in pixels
SafeArea	bool	true	Adds env(safe-area-inset-bottom) padding (home-indicator clearance)
ZIndex	int	100	Stacking order
CssClass	string?	null	Extra root CSS class
Style	string?	null	Extra inline style appended to the root

Events: SelectedKeyChanged (two-way bind via @bind-SelectedKey), ItemClicked — fires the tapped TabBarItem.

TabBarItem properties

Property	Type	Default	Description
Key	string?	null	Stable identifier used for selection
Icon	string?	null	Inline SVG/HTML, a glyph/emoji, or an image URL (shown when inactive)
ActiveIcon	string?	null	Optional filled variant shown when the tab is selected
Label	string?	null	Label beneath the icon (hidden when ShowLabels is false)
Href	string?	null	When set, selecting the tab also navigates here
Badge	string?	null	Badge text; an empty string "" renders a dot
IsDisabled	bool	false	Dims the tab and blocks selection
Tag	object?	null	Arbitrary payload returned via ItemClicked

Placement & scroll-under

position: sticky sticks relative to the nearest scroll container, and any ancestor with overflow: hidden silently breaks it — use overflow: clip if you must clip an axis.

For app-wide chrome, place ShinyToolbar as the first element of your page/layout scroll area and drop ShinyTabBar anywhere (it’s Fixed). A common responsive pattern is a sidebar on desktop that gives way to a bottom ShinyTabBar on narrow viewports:

<main class="content">
    <ShinyToolbar Dock="ToolbarDock.Top" Frosted="true" Title="My App" />

    <div class="content-inner">
        @Body
    </div>

    <ShinyTabBar CssClass="mobile-tabbar" Items="@tabs" SelectedKey="@CurrentKey" />
</main>

/* hidden on desktop; shown on narrow screens (::deep reaches the child component root) */
.content ::deep .mobile-tabbar { display: none; }

@media (max-width: 820px) {
    .sidebar { display: none; }
    .content ::deep .mobile-tabbar { display: block; }
    .content-inner { padding-bottom: calc(56px + env(safe-area-inset-bottom) + 16px); }
}

Note

Colors are CSS strings. Two-way binding on the tab bar uses the SelectedKey / SelectedKeyChanged pattern (@bind-SelectedKey). Custom toolbar content uses Blazor RenderFragment slots (StartContent / ChildContent / EndContent).
