MediaElement

Shiny.Maui.Controls.MediaElement plays local and remote audio and video on iOS, Android, Windows, Mac Catalyst and macOS AppKit, with a companion Shiny.Maui.Controls.MediaElement.Linux for the GTK4 head and Shiny.Blazor.Controls.MediaElement for the web. One API across all six; each sits on the platform’s real player — AVPlayer, Media3/ExoPlayer, Windows.Media.Playback, GtkMediaFile, and HTML5 media.

Two decisions shape the whole control.

The transport bar is drawn by Shiny, not handed to the platform. That is the only way each piece of it can be shown or hidden on its own: native transport UI is all-or-nothing everywhere except Windows — iOS’s AVPlayerViewController has a single showsPlaybackControls, HTML5’s controlsList can only subtract download/fullscreen/cast and only in Chromium, and GTK’s GtkMediaControls has no knobs at all. Drawing it also means one look on every target, themed from your Shiny theme pack.

The player outlives the view. An IMediaPlayerBackend owns the platform player and the view is pushed into it. That is what makes the two hard features work rather than being approximations: entering fullscreen hands the same running player to a second surface on a modal page, so nothing re-buffers and your layout is left alone; and backgrounding detaches the video surface entirely while the audio keeps going.

• Transport Bar — showing and hiding each control, styling, commands
• Background Playback & PiP — lock-screen audio, Picture-in-Picture, and the manifest opt-ins your app must make
• Blazor Usage — the WebAssembly specifics

MAUI

Blazor

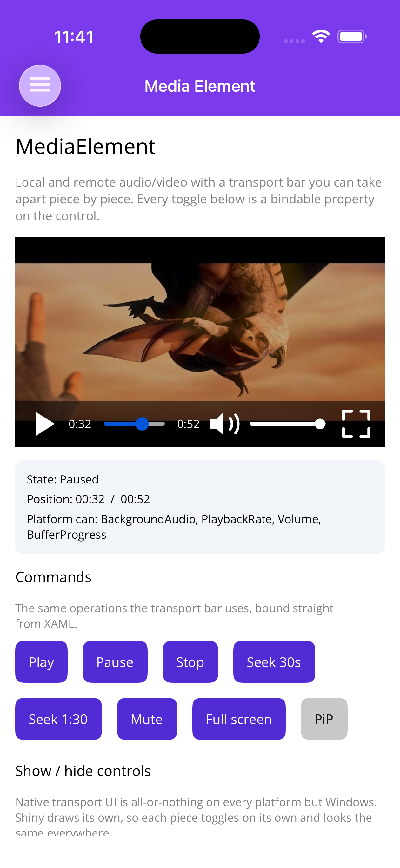

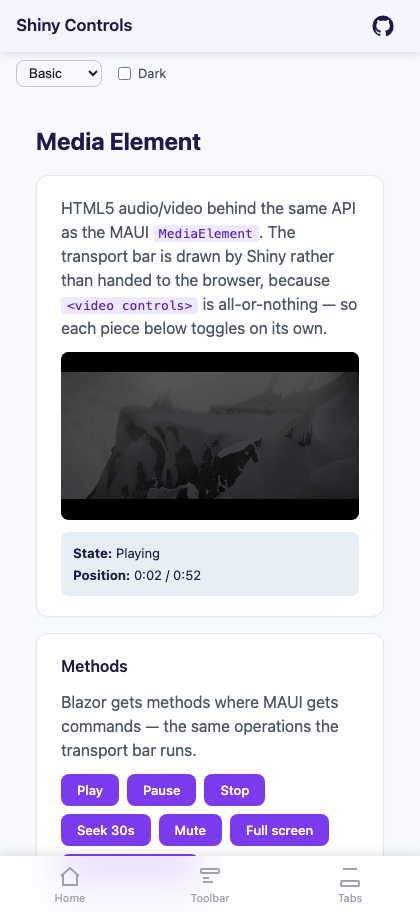

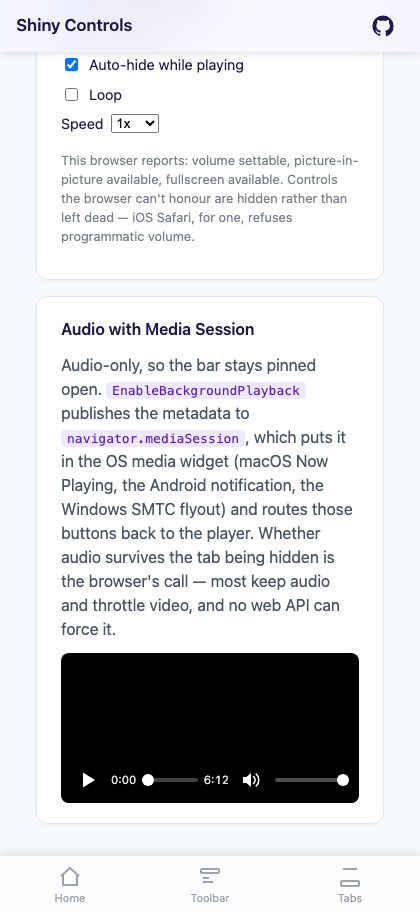

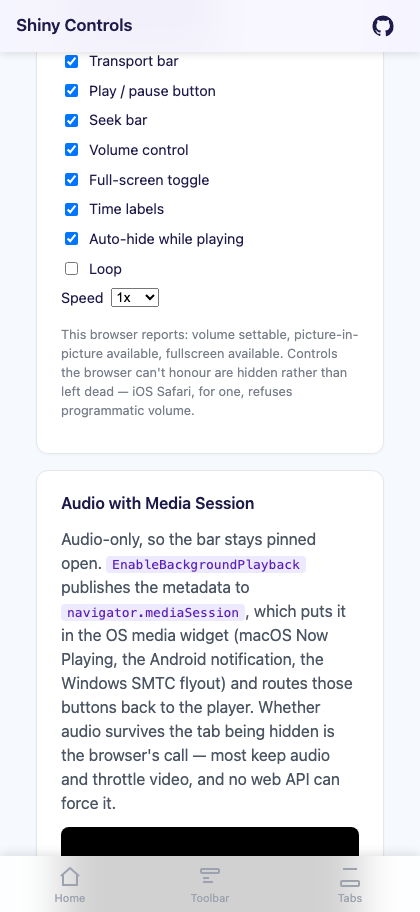

Video playing with the transport bar	Transport pieces toggled independently	Audio with media session

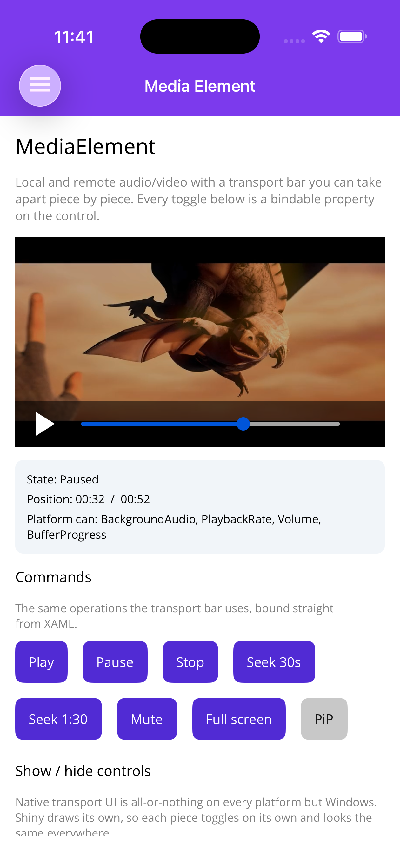

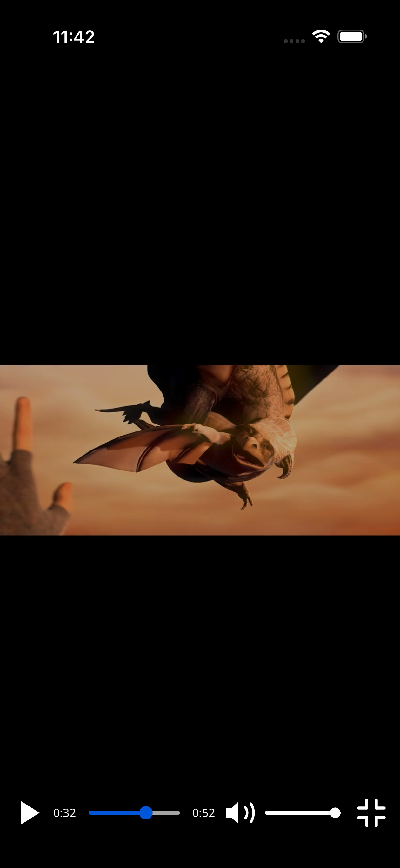

Left to right: the full transport bar; the same player with ShowVolumeControl, ShowTimeLabels and ShowFullScreenButton switched off — the scrubber takes the freed space; and fullscreen, which carries on from the same position because it shares the running player.

•
•
•

Frameworks

.NET MAUI

Blazor

Operating Systems

iOS

Android

Windows

macOS

Linux

Web

Setup

dotnet add package Shiny.Maui.Controls.MediaElement

builder
    .UseShinyControls()
    .UseShinyMediaElement();

xmlns:media="http://shiny.net/maui/media"

<media:MediaElement Source="https://example.com/clip.mp4"
                    AutoPlay="True"
                    Aspect="AspectFit"
                    HeightRequest="220" />

The types live in Shiny.Maui.Controls.Media; the enums and DTOs shared with Blazor (MediaElementState, MediaAspect, MediaMetadata, MediaPlaybackCapabilities) live in Shiny.Controls.Media and are surfaced under the same XAML namespace.

Linux (GTK4)

There is no Linux target framework, so the GTK backend ships as its own package — otherwise referencing GirCore would drag GTK into every non-platform consumer of the main package’s net10.0 build. It replaces the normal registration rather than supplementing it:

dotnet add package Shiny.Maui.Controls.MediaElement.Linux

builder.UseShinyMediaElementGtk();   // instead of UseShinyMediaElement()

Decoding comes from GStreamer through GTK’s media backend, so the machine needs gtk4-media-gstreamer (Fedora/Arch) or libgtk-4-media-gstreamer (Debian/Ubuntu), plus codec plugins for whatever you play. Without it the control still lays out and reports a load failure through MediaFailed.

Sources

Source is a MediaSource with a TypeConverter, so a bare string in XAML is classified for you:

You write	You get	Plays from
https://…, http://…, an HLS or DASH manifest	UriMediaSource	the network
a rooted path, or file:///…	FileMediaSource	the device filesystem
anything else — intro.mp4, clips/intro.mp4	ResourceMediaSource	a Resources/Raw file in the app package

Or build them explicitly:

player.Source = MediaSource.FromUri("https://example.com/clip.mp4");
player.Source = MediaSource.FromFile(downloadedPath);
player.Source = MediaSource.FromResource("intro.mp4");

Each backend resolves the packaged form to its own scheme — asset:/// on Android, the app bundle on Apple, ms-appx:/// on Windows, the app directory on GTK.

Properties

Property	Type	Default	Notes
Source	MediaSource	null	see above
AutoPlay	bool	false	play as soon as the source opens
IsLooping	bool	false	suppresses MediaEnded
Volume	double	1	clamped 0..1
IsMuted	bool	false	independent of Volume
PlaybackRate	double	1	clamped 0.25..4
Position	TimeSpan	0	two-way — read back every PositionUpdateInterval, and assigning it seeks
Duration	TimeSpan	0	read-only; zero until the source opens, and for live streams
CurrentState	MediaElementState	None	None / Opening / Buffering / Playing / Paused / Stopped / Failed
BufferedProgress	double	0	0..1, drawn as the scrubber’s secondary track
Aspect	MediaAspect	AspectFit	AspectFit / AspectFill / Fill
KeepScreenOn	bool	false	inhibit display sleep while playing
PositionUpdateInterval	TimeSpan	250ms	how often the playhead is polled
IsFullScreen	bool	false	two-way
EnableBackgroundPlayback	bool	false	see Background Playback
Metadata	MediaMetadata	null	Title / Artist / Album / ArtworkUri for the OS transport UI
Capabilities	MediaPlaybackCapabilities	None	read-only — what this backend actually honours

Position deserves a note: the control polls the player rather than each backend pushing, so every platform ticks at the same rate. The tick writes the player’s own position into the property, and an outside write is what means “seek” — so binding Position two-way to a view model doesn’t fight the player.

Events: StateChanged, MediaOpened, MediaEnded, MediaFailed, PositionChanged, SeekCompleted, FullScreenChanged, PictureInPictureChanged.

Fullscreen

IsFullScreen, ToggleFullScreen() and ToggleFullScreenCommand push a modal page carrying a second surface bound to the same player. Playback continues rather than restarting, the inline control keeps its place in your layout, and Android’s back gesture collapses it. FullScreenChanged fires however it was triggered.

The alternative — reparenting the control into an overlay — would recreate its platform view, which for a video surface means a visible stall and a fresh buffer on a remote stream.

Capabilities

Support genuinely differs by platform, so read Capabilities before offering an affordance. The built-in transport bar already hides what the backend can’t do.

	Background audio	Picture-in-Picture	Playback rate	Volume	Buffer progress
iOS / Mac Catalyst	✅	✅	✅	✅	✅
Android	✅	✅ (API 26+)	✅	✅	✅
Windows	✅ (SMTC)	❌	✅	✅	✅
macOS AppKit	✅	❌	✅	✅	✅
Linux GTK4	❌	❌	❌	✅	❌
Blazor	browser’s call	✅ where available	✅	⚠️ probed	✅

• Windows has no per-element Picture-in-Picture API. The nearest thing, a compact-overlay AppWindow, shrinks the whole app window rather than detaching the video, so it isn’t offered as PiP.
• macOS AppKit could do PiP through AVKit, but the MAUI AppKit host is preview-quality and it is untested there — the capability is deliberately not advertised rather than offering a button that may do nothing.
• Linux continues playing while the window is hidden, because a desktop process is never suspended; there are no OS transport controls, though, so BackgroundAudio isn’t claimed. There is no MPRIS integration yet, GtkMediaStream has no rate control, and it reports no buffered-ahead figure.
• Blazor probes volume at runtime by writing a value and reading it back, because iOS Safari silently ignores writes to video.volume and nothing advertises that.

Substituting the player

MediaPlayerBackends.Factory is the hook every MediaElement uses to create its player — a static hook rather than DI because a control declared in XAML has no service provider, and because the GTK head has to replace it from a different assembly.

MediaPlayerBackends.Factory = () => new MyBackend();

Implement IMediaPlayerBackend to plug in your own player, or a fake so the control’s own logic can be tested with no device attached.
