ProgressBar

A progress bar control with gradient fill and a configurable Vista-style shimmer pulse that sweeps left-to-right across the filled portion of the bar. Supports determinate, indeterminate, text overlay, and timed/value-triggered pulse animations.

•
•

Frameworks

.NET MAUI

Blazor

MAUI

Blazor

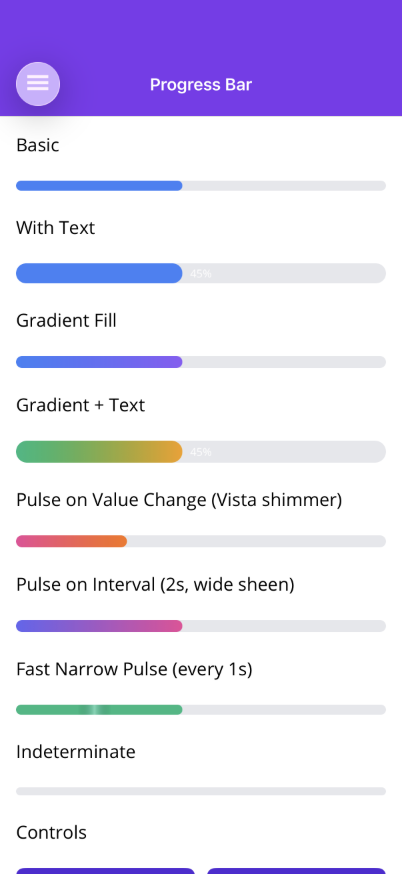

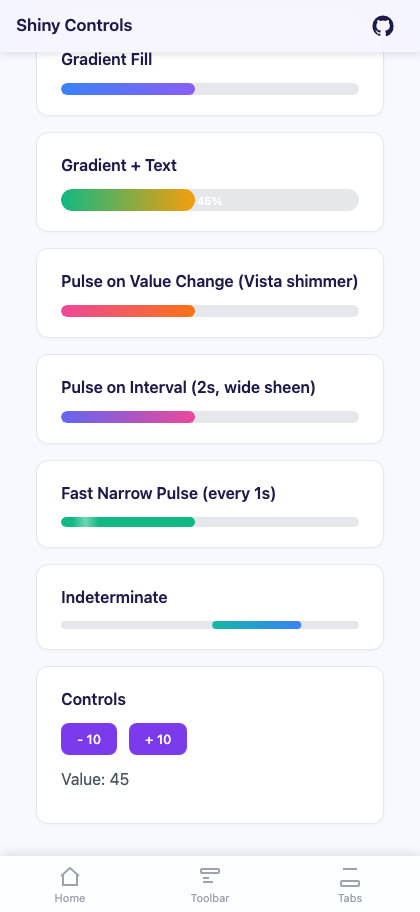

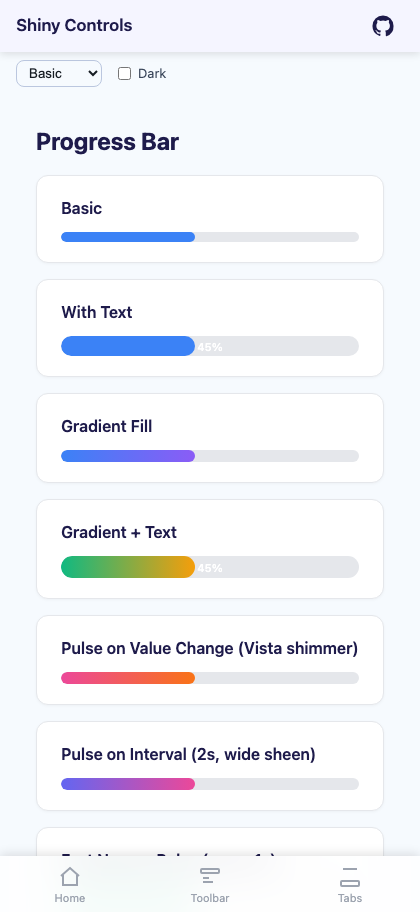

Gradient fill and text	Indeterminate and pulse

Segments	Segments + gradient

Features

Feature	Description
Gradient Fill	Linear gradient from GradientStartColor to GradientEndColor across the filled bar.
Vista-Style Shimmer Pulse	A translucent highlight sweeps left-to-right across the bar. Configurable width (PulseLength) and speed (PulseSpeed).
Pulse Triggers	Pulse on every value change (PulseOnValueChange) or on a repeating timer (PulseInterval).
Text Overlay	Show percentage or custom-formatted text centered on the bar.
Indeterminate Mode	A sliding bar animation for unknown progress.
Segments	Split the bar into separate steps (Segments, SegmentSpacing) instead of one solid bar.
Standard Properties	Value, Minimum, Maximum, TrackColor, BarColor, TrackHeight, CornerRadius.

Basic Usage

.NET MAUI

<shiny:ProgressBar Value="{Binding Progress}"
                   TrackHeight="12"
                   CornerRadius="6"
                   UseGradient="True"
                   GradientStartColor="#3B82F6"
                   GradientEndColor="#8B5CF6"
                   PulseEnabled="True"
                   PulseOnValueChange="True"
                   PulseLength="0.4"
                   PulseSpeed="800" />

Blazor

<ProgressBar Value="@progress"
             TrackHeight="12"
             CornerRadius="6px"
             UseGradient="true"
             GradientStartColor="#3B82F6"
             GradientEndColor="#8B5CF6"
             PulseEnabled="true"
             PulseOnValueChange="true"
             PulseLength="0.4"
             PulseSpeed="800" />

Properties

Property	Type (MAUI / Blazor)	Default	Description
Value	double	0	Current progress value (TwoWay)
Minimum	double	0	Minimum value
Maximum	double	100	Maximum value
TrackColor	Color / string	#E5E7EB	Background track color
BarColor	Color / string	#3B82F6	Fill color when gradient is disabled
TrackHeight	double	8	Track height in pixels
CornerRadius	double / string	4 / “4px”	Corner radius
UseGradient	bool	false	Enable gradient fill
GradientStartColor	Color / string	#3B82F6	Left gradient color
GradientEndColor	Color / string	#8B5CF6	Right gradient color
PulseEnabled	bool	false	Enable shimmer pulse
PulseOnValueChange	bool	true	Trigger pulse when Value changes
PulseInterval	TimeSpan	0	Repeating pulse timer (e.g. 2 seconds)
PulseColor	Color / string	White / “rgba(255,255,255,0.4)”	Shimmer color
PulseOpacity	double	0.4	Peak shimmer opacity (MAUI only)
PulseLength	double	0.4	Width of shimmer as fraction of fill (0.05–1.0)
PulseSpeed	int	800	Milliseconds for one left-to-right sweep
ShowText	bool	false	Show text overlay
TextFormat	string	“{0:0}%”	Format string (receives percentage 0–100)
TextColor	Color / string	White	Text color
FontSize	double	11	Text font size
IsIndeterminate	bool	false	Enable indeterminate animation
Segments	int	0	Split the bar into this many steps; 0/1 = continuous
SegmentSpacing	double	4	Gap between segments

Events & Commands

Name	Type	Description
ValueChangedEvent	EventHandler<double>	Fires when Value changes (MAUI)
ValueChanged	EventCallback<double>	Fires when Value changes (Blazor)
ValueChangedCommand	ICommand	Command fired on value change (MAUI)

Examples

Simple with text

<shiny:ProgressBar Value="75"
                   TrackHeight="20"
                   CornerRadius="10"
                   ShowText="True" />

Gradient with pulse on interval

<shiny:ProgressBar Value="{Binding DownloadProgress}"
                   UseGradient="True"
                   GradientStartColor="#6366F1"
                   GradientEndColor="#EC4899"
                   PulseEnabled="True"
                   PulseOnValueChange="False"
                   PulseInterval="0:00:02"
                   PulseLength="0.6"
                   PulseSpeed="1200" />

Fast narrow pulse

<shiny:ProgressBar Value="{Binding UploadProgress}"
                   BarColor="#10B981"
                   PulseEnabled="True"
                   PulseOnValueChange="False"
                   PulseInterval="0:00:01"
                   PulseLength="0.2"
                   PulseSpeed="500" />

Indeterminate (loading)

<shiny:ProgressBar IsIndeterminate="True"
                   UseGradient="True"
                   GradientStartColor="#14B8A6"
                   GradientEndColor="#3B82F6" />

Blazor indeterminate

<ProgressBar IsIndeterminate="true"
             UseGradient="true"
             GradientStartColor="#14B8A6"
             GradientEndColor="#3B82F6" />

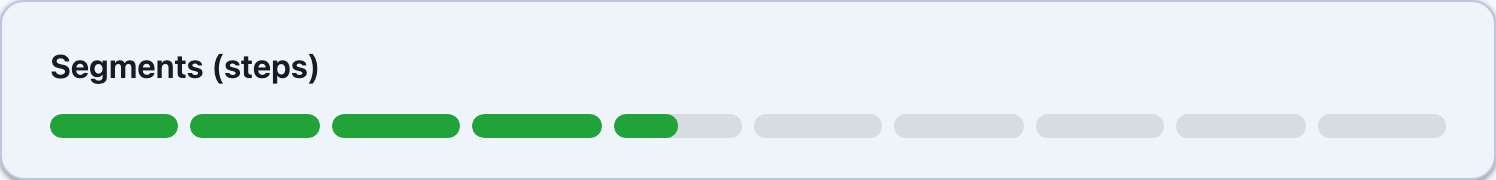

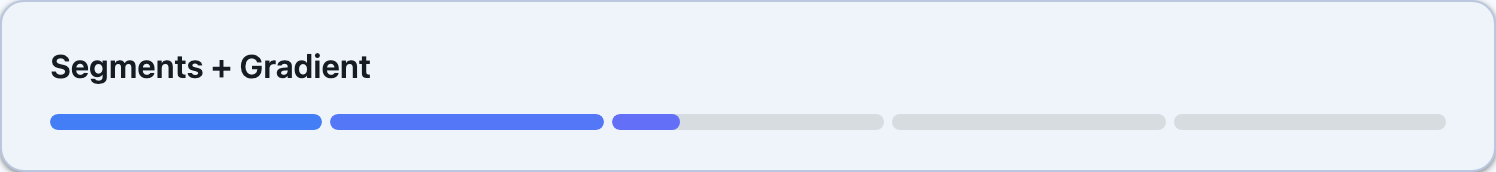

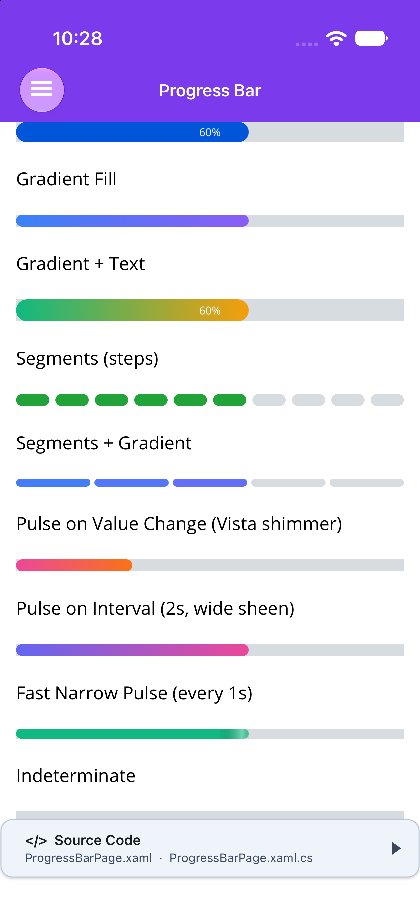

Segments (Steps)

Set Segments to split the bar into separate steps with a gap between them instead of one solid bar - the stepped look of a delivery tracker or a multi-stage upload. 0 (the default) or 1 draws the continuous bar.

<shiny:ProgressBar Value="{Binding CompletedStops}"
                   Maximum="11"
                   Segments="11"
                   SegmentSpacing="6"
                   TrackHeight="12"
                   CornerRadius="6"
                   BarColor="#22A33A" />

<ProgressBar Value="@completedStops"
             Maximum="11"
             Segments="11"
             SegmentSpacing="6"
             TrackHeight="12"
             CornerRadius="6px"
             BarColor="#22A33A" />

• The fill runs across the steps in order, so a value part-way through a step lights that step partially. For whole steps, make Maximum (or the value’s step size) line up with the segment count - Maximum="11" Segments="11", or Segments="10" with a value moving in 10s.
• TrackColor, BarColor and CornerRadius apply to each step. A gradient is spread across the run: each step is painted with the gradient’s colour at its centre.
• The fill slide still animates, and it travels step by step through the gaps.
• ShowText centres the text over the whole bar.
• Indeterminate mode and the pulse sheen always use the continuous bar.

How the Pulse Works

The pulse is a Vista-style shimmer sweep – a translucent gradient highlight (transparent -> color -> transparent) that animates from the left edge to the right edge of the filled portion.

Platform	Details
MAUI	A BoxView with a LinearGradientBrush animates TranslationX across the fill, clipped by a parent container.
Blazor	A CSS ::after pseudo-element with linear-gradient animates via @keyframes from left to right.

Configure the look:

• PulseLength controls width: 0.2 = narrow beam, 0.6 = wide glow, 1.0 = full bar flash.
• PulseSpeed controls animation duration: 500 = fast, 1200 = slow and smooth.
• PulseColor / PulseOpacity control the highlight appearance.
