ButtonGroup

Joins related buttons into one segmented control — inner corners square off and adjacent outlines collapse into a single edge, running across or down.

•
•

Frameworks

.NET MAUI

Blazor

Features

• One control out of several buttons — the joining is automatic: the outer corners keep the theme’s radius, the inner ones square off, and adjacent outlines are pulled together into one hairline.
• Horizontal or vertical — Orientation turns the whole thing, rounding and collapse included.
• Optional selection — SelectionMode is None by default. Turn it on and the same markup becomes a segmented picker with a two-way SelectedIndex.
• Split buttons — ButtonGroupSeparator divides a primary action from its alternatives.
• Static segments — ButtonGroupText is a label, unit or prefix sitting flush with the buttons.
• Clusters — a group of groups keeps each inner group’s merged edges and spaces the two apart.

AI Skill

Claude CodeGitHub Copilot

Step 1 — Add the marketplace:

claude plugin marketplace add shinyorg/skills

Step 2 — Install the plugin:

claude plugin install shiny@shiny

One plugin installs all 36 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

Step 1 — Add the marketplace:

copilot plugin marketplace add https://github.com/shinyorg/skills

Step 2 — Install the plugin:

copilot plugin install shiny@shiny

One plugin installs all 36 Shiny skills. Your agent loads only the skill relevant to what you're building, so there's no cost to having them all available.

View Skills Repository

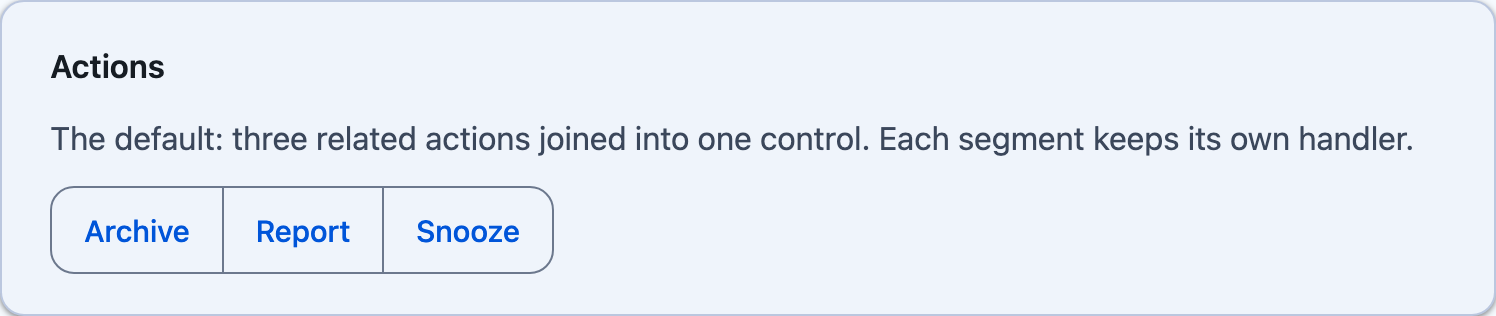

Quick Start

<shiny:ButtonGroup>
    <shiny:ShinyButton Text="Archive" Appearance="Outlined" Command="{Binding ArchiveCommand}" />
    <shiny:ShinyButton Text="Report"  Appearance="Outlined" Command="{Binding ReportCommand}" />
    <shiny:ShinyButton Text="Snooze"  Appearance="Outlined" Command="{Binding SnoozeCommand}" />
</shiny:ButtonGroup>

<ButtonGroup>
    <ShinyButton Text="Archive" Appearance="ButtonAppearance.Outlined" Clicked="ArchiveAsync" />
    <ShinyButton Text="Report"  Appearance="ButtonAppearance.Outlined" Clicked="ReportAsync" />
    <ShinyButton Text="Snooze"  Appearance="ButtonAppearance.Outlined" Clicked="SnoozeAsync" />
</ButtonGroup>

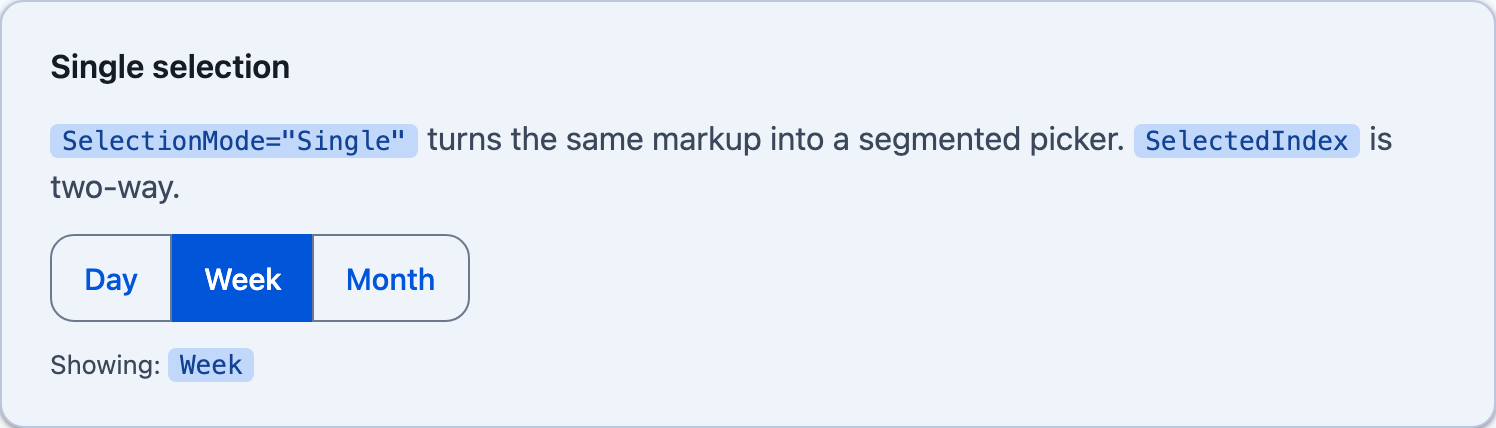

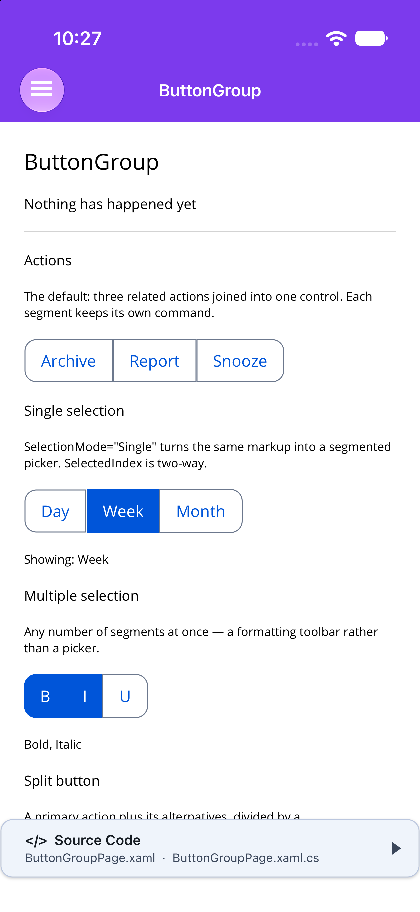

Selection

SelectionMode defaults to None, and with it the group touches nothing — it joins the segments and gets out of the way, with each button keeping its own command. Turn it on and the same markup becomes a picker:

<shiny:ButtonGroup SelectionMode="Single" SelectedIndex="{Binding RangeIndex}">
    <shiny:ShinyButton Text="Day" />
    <shiny:ShinyButton Text="Week" />
    <shiny:ShinyButton Text="Month" />
</shiny:ButtonGroup>

<ButtonGroup SelectionMode="ButtonGroupSelectionMode.Single" @bind-SelectedIndex="range">
    <ShinyButton Text="Day" />
    <ShinyButton Text="Week" />
    <ShinyButton Text="Month" />
</ButtonGroup>

While a selection mode is on, the group owns each segment’s appearance — selected segments take SelectedAppearance (Filled), the rest UnselectedAppearance (Outlined) — unless the segment set an appearance of its own, which wins, so one odd segment in a picker stays odd. Leaving the selection mode hands every appearance back.

Single ignores a click on the already-selected segment, because a picker that can be emptied by clicking its own answer again is a picker with no answer; AllowDeselect allows it. Multiple always toggles. Only buttons are selectable — a text segment or a separator is chrome, and counting it would make the indexes a view model sees depend on where a divider happens to sit.

Reach for TabbedPage’s ShinyTabBar instead when the segments switch pages rather than a value.

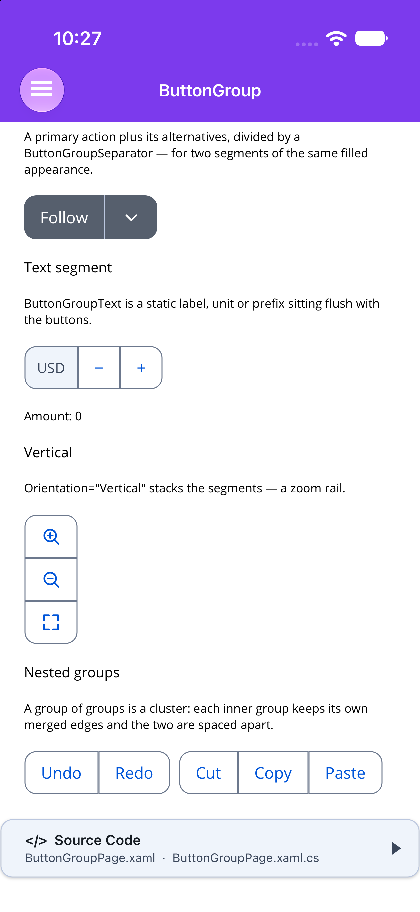

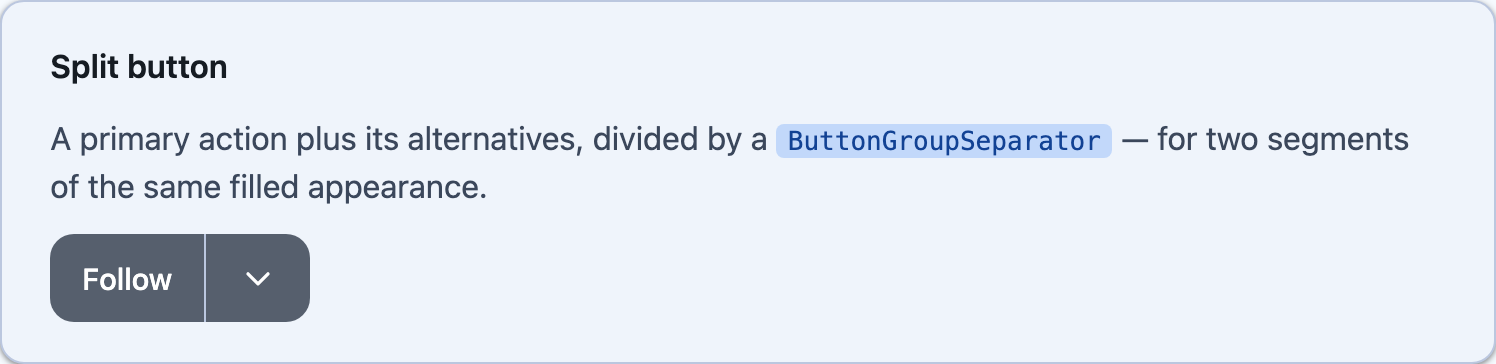

Split buttons and static segments

<shiny:ButtonGroup>
    <shiny:ShinyButton Text="Follow" Type="Secondary" Command="{Binding FollowCommand}" />
    <shiny:ButtonGroupSeparator />
    <shiny:ShinyButton RightMotionIcon="chevron-down" Type="Secondary"
                       SemanticProperties.Description="More follow options"
                       Command="{Binding MoreCommand}" />
</shiny:ButtonGroup>

<shiny:ButtonGroup>
    <shiny:ButtonGroupText Text="USD" />
    <shiny:ShinyButton Text="−" Appearance="Outlined" Command="{Binding DecreaseCommand}" />
    <shiny:ShinyButton Text="+" Appearance="Outlined" Command="{Binding IncreaseCommand}" />
</shiny:ButtonGroup>

<ButtonGroup>
    <ShinyButton Text="Follow" Type="ButtonType.Secondary" Clicked="FollowAsync" />
    <ButtonGroupSeparator />
    <ShinyButton RightMotionIcon="chevron-down" Type="ButtonType.Secondary"
                 aria-label="More follow options" Clicked="MoreAsync" />
</ButtonGroup>

<ButtonGroup>
    <ButtonGroupText Text="USD" />
    <ShinyButton Text="−" Appearance="ButtonAppearance.Outlined" Clicked="DecreaseAsync" />
    <ShinyButton Text="+" Appearance="ButtonAppearance.Outlined" Clicked="IncreaseAsync" />
</ButtonGroup>

A separator belongs between two filled segments. Outlined ones already have an edge, and the collapsed outline is the divider.

Properties

Property	Type	Default	Description
Orientation	StackOrientation / ToolbarOrientation	Horizontal	Which way the segments run
SelectionMode	ButtonGroupSelectionMode	None	None, Single or Multiple
SelectedIndex	int	-1	The selected segment (two-way)
SelectedIndexes	IReadOnlyList<int>	empty	Every selected index, ascending
AllowDeselect	bool	false	Whether the selected segment can clear itself in Single
SelectedAppearance	ButtonAppearance	Filled	How a selected segment paints
UnselectedAppearance	ButtonAppearance	Outlined	How an unselected segment paints
CollapseBorders	bool	true	Pull each outlined segment into the one before it
CornerRadius	double	unset	The outer corners; unset follows the theme
BorderThickness	double	unset	How much of an overlap the collapse takes (MAUI)
ClusterSpacing	double	8	Gap between nested groups (MAUI)

Events: SelectionChanged, plus SelectionChangedCommand on MAUI.

How the joining works

Worth knowing, because it is where the hosts genuinely differ.

On MAUI the group resolves the theme’s corner radius and hairline thickness numerically — through a hidden probe in its own resource chain, so a live theme swap re-runs the geometry rather than freezing it at startup — and pushes squared-off corners onto each segment. The collapse is a negative margin, and it is applied only to segments that actually paint an outline: a filled segment has no edge to double up, and pulling it into its neighbour would only overlap the two fills.

On Blazor the joining is pure CSS over :first-child / :last-child using logical corner properties, so it mirrors under a right-to-left reading direction with no second rule, and it works for any segment without the group counting its children. One consequence to know: a per-button CornerRadius is written as an inline custom property, and inline wins — that button keeps its own rounding inside a group.
