ShinyImage

A remote image that always shows something: placeholder artwork, a loading ring, the image itself, or error artwork. On MAUI it loads through an IImageService that caches to memory and disk, caps how many downloads run at once, and collapses concurrent requests for the same URI into a single download. On Blazor it streams through fetch so the ring can report a real percentage.

•
•

Frameworks

.NET MAUI

Blazor

Screenshots

MAUI (iOS)

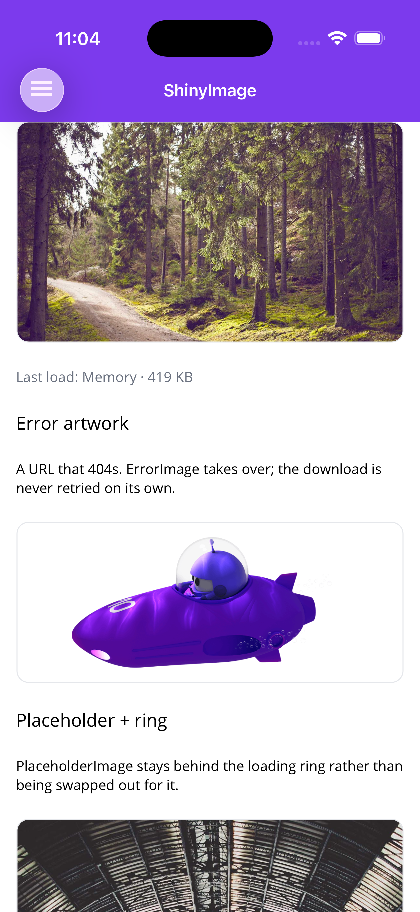

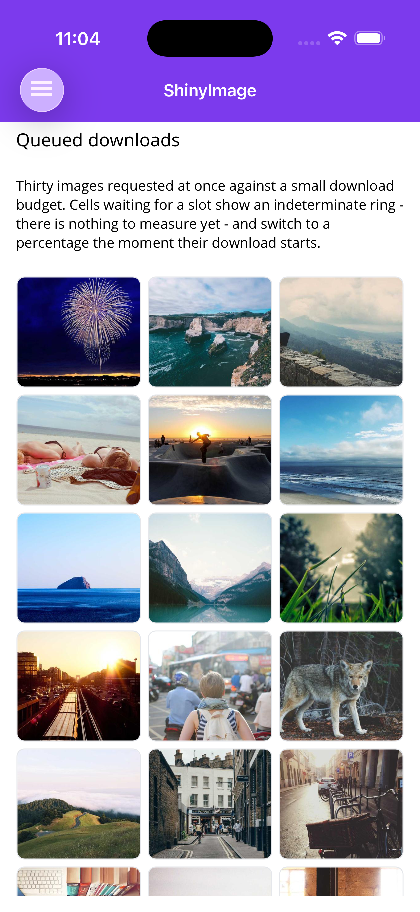

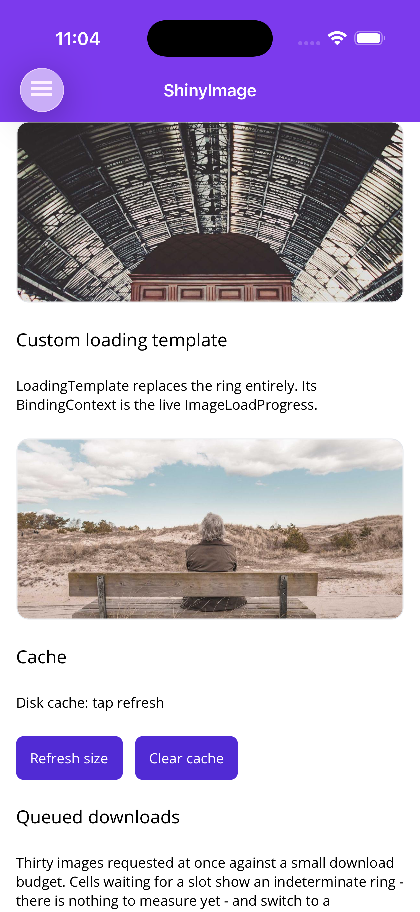

Loaded, error artwork, placeholder	Custom loading template	Queued downloads

Blazor

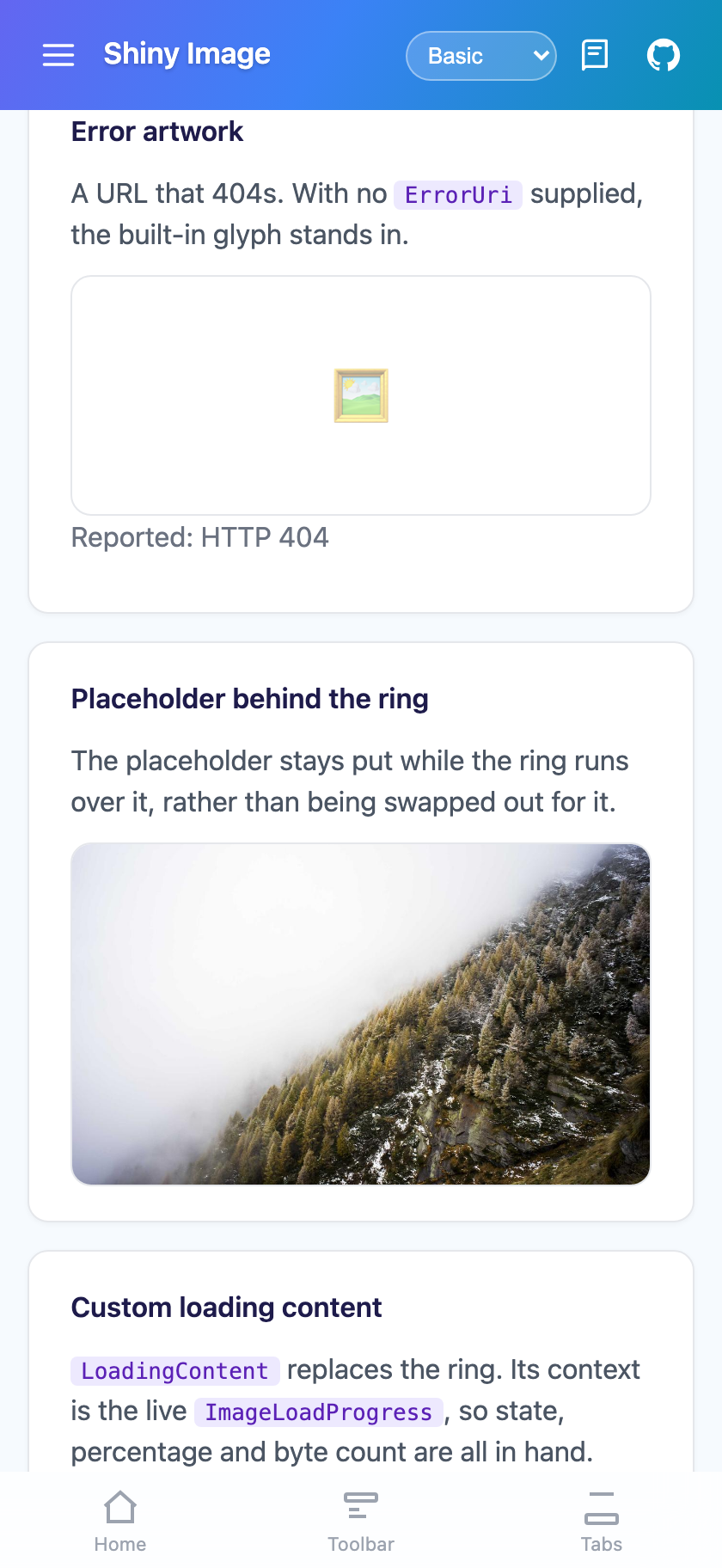

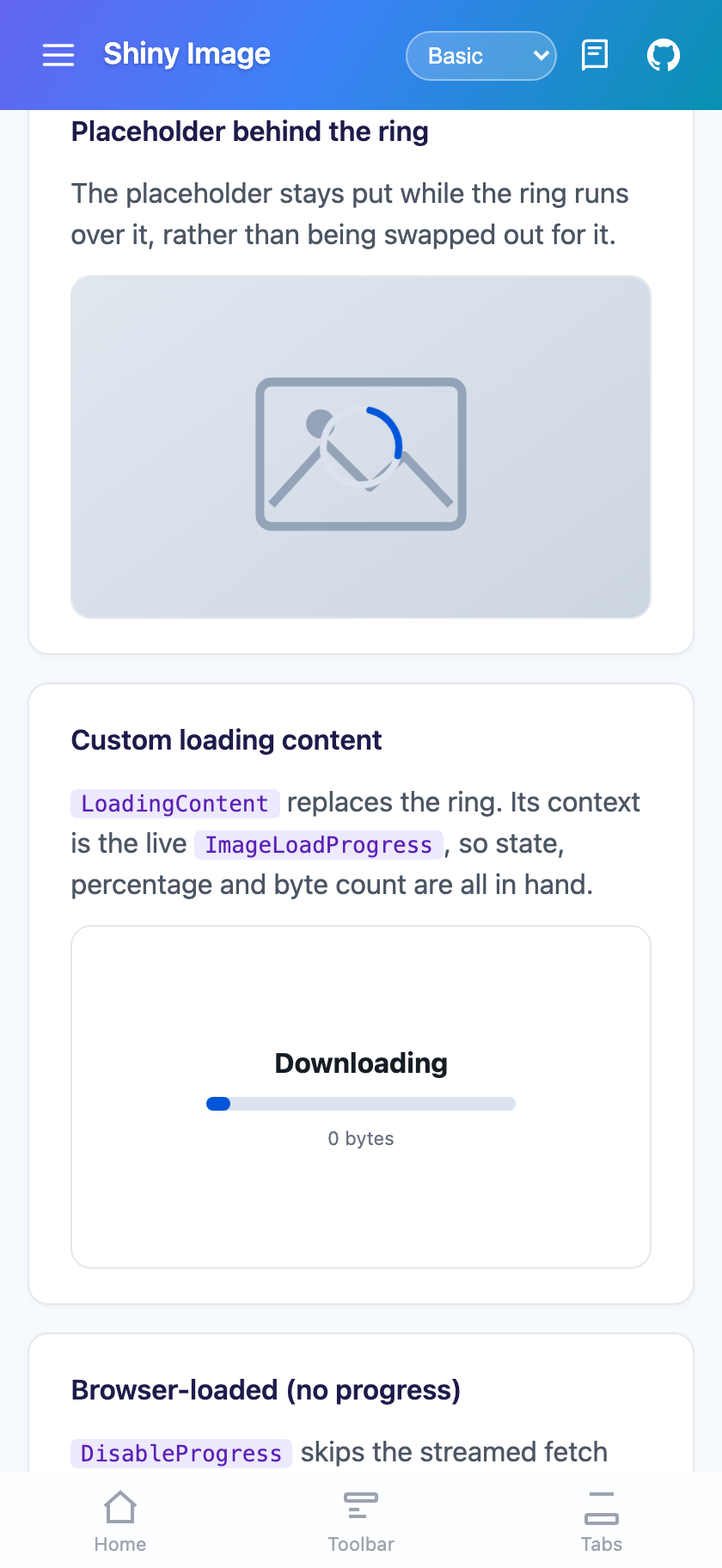

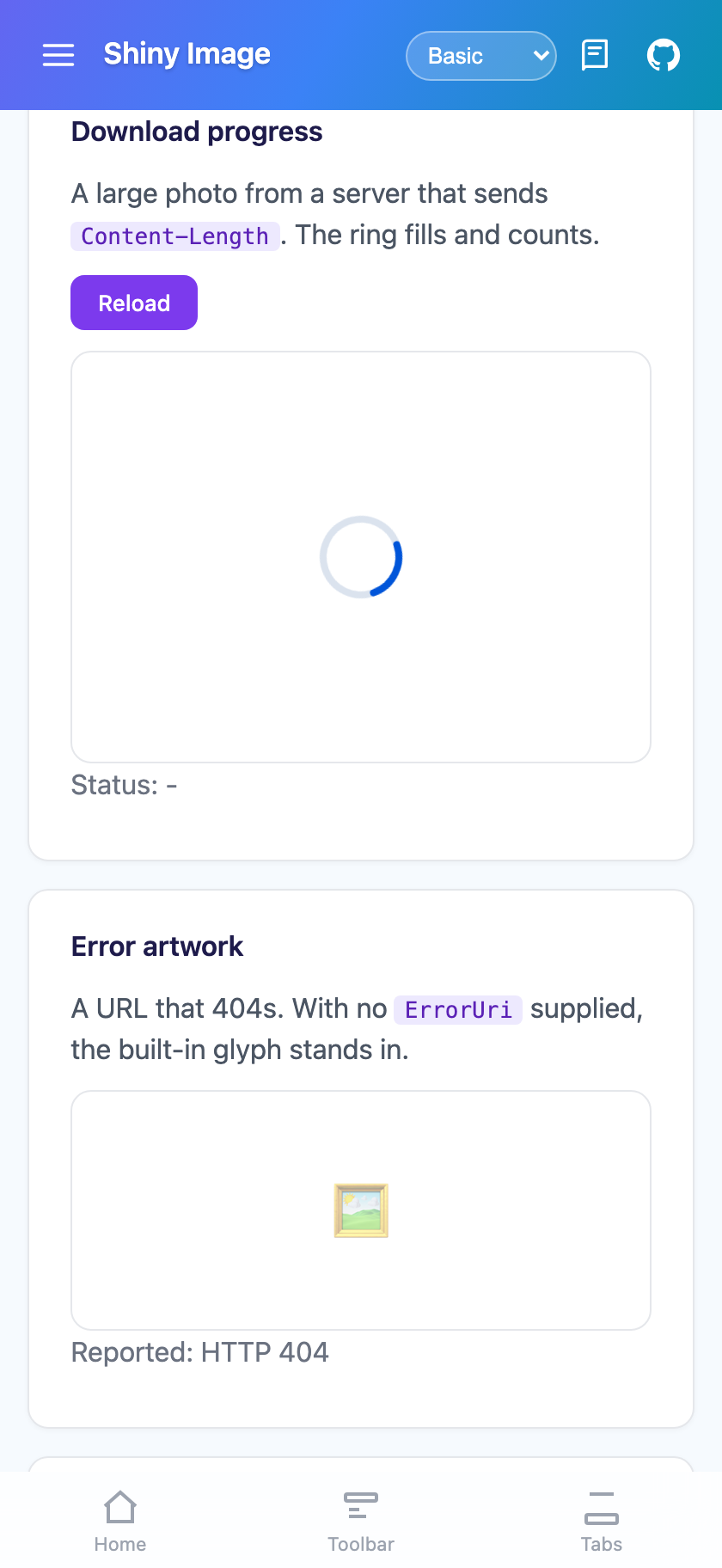

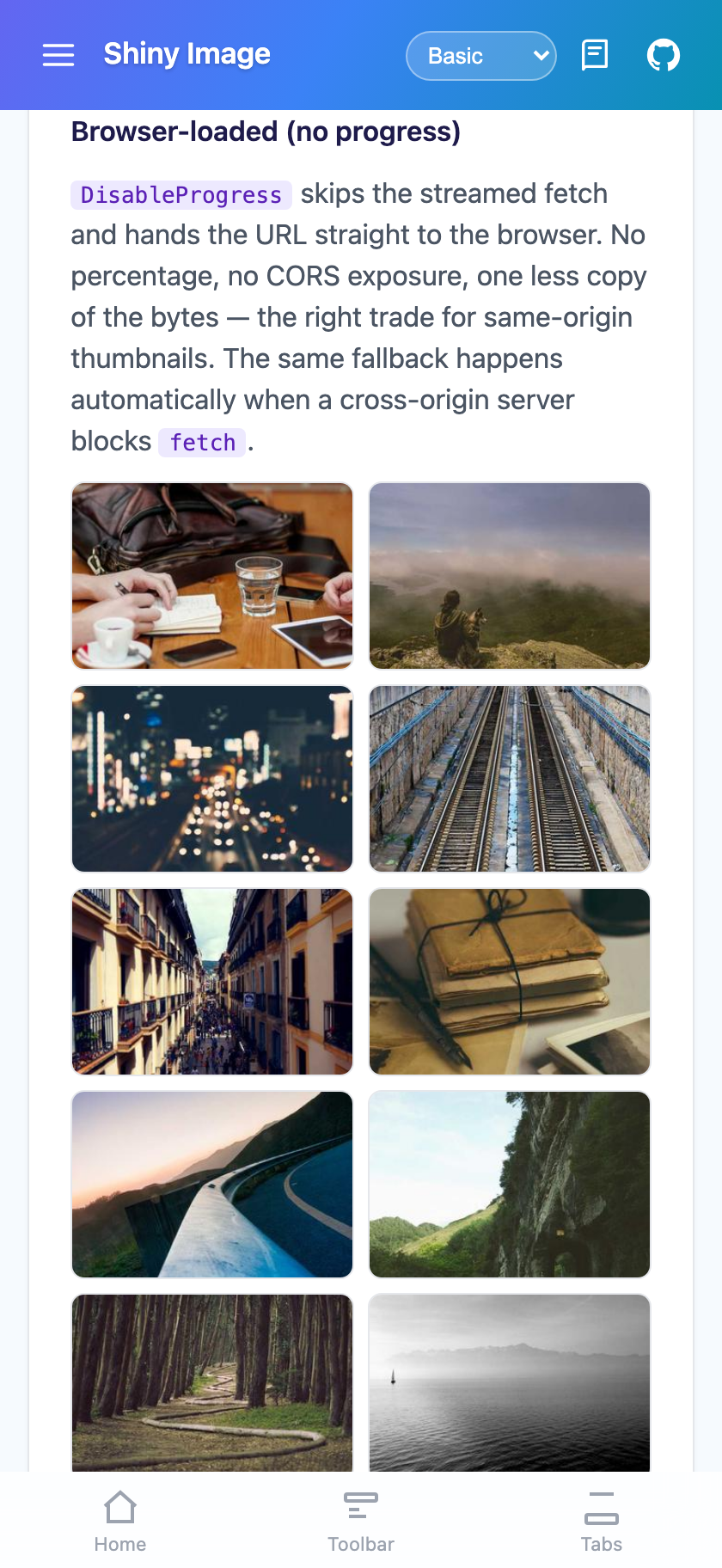

The ring	Placeholder behind the ring	Error artwork	Browser-loaded thumbnails

Basic Usage

MAUI

<shiny:ShinyImage Uri="{Binding AvatarUrl}"
                  PlaceholderImage="avatar_placeholder.png"
                  ErrorImage="broken_image.png"
                  Aspect="AspectFill"
                  HeightRequest="120" />

Blazor

<ShinyImage Uri="@PhotoUrl"
            PlaceholderUri="/images/placeholder.svg"
            Alt="Profile photo"
            ObjectFit="cover" />

The placeholder sits behind the loading ring rather than being swapped out for it, so a blurred thumbnail with a progress ring over it is two properties.

The ring picks its own mode

There is no IsIndeterminate to set. Percent is null in exactly the cases where a percentage would be a lie:

• the request is queued, waiting for a download slot — nothing has been measured yet
• the response carried no Content-Length (chunked transfer, or a proxy that stripped it)
• the browser is loading the image itself (the Blazor CORS fallback, below)

Null means the ring spins; anything else means it fills and counts. Bind Uri and let the control decide.

Properties

MAUI

Property	Type	Default	Description
Uri	string?	null	The image to load. http/https goes through IImageService; anything else loads as a local file or bundled resource
Source	ImageSource?	null	An explicit source. Takes precedence over Uri and skips the service entirely
PlaceholderImage	ImageSource?	null	Artwork shown before and during the load, behind the ring
ErrorImage	ImageSource?	null	Artwork shown on failure. Ignored when ErrorTemplate is set
LoadingTemplate	DataTemplate?	null	Replaces the ring. BindingContext is the live ImageLoadProgress
ErrorTemplate	DataTemplate?	null	Replaces the error artwork
Aspect	Aspect	AspectFit	How the image scales. Applies to the placeholder too
FadeInDuration	uint	150	Fade-in milliseconds once loaded. 0 shows it instantly
RingSize	double	48	Diameter of the loading ring
RingColor	Color?	null	Progress arc; null uses the theme Primary token
RingTrackColor	Color?	null	Unfilled track; null uses SurfaceContainerHighest
ProgressTextColor	Color?	null	Percentage label; null uses OnSurface
ShowProgressText	bool	true	Draw the percentage inside the ring. Never shown when indeterminate
CacheEnabled	bool	true	Whether this image participates in the caches
CacheDuration	TimeSpan?	null	Overrides ImageOptions.DiskCacheDuration for this image
State	ImageLoadState	None	Read-only: None, Queued, Downloading, Loaded, Failed
Progress	ImageLoadProgress	—	Read-only live snapshot
IsLoading	bool	false	Read-only: true while queued or downloading
LoadError	Exception?	null	Read-only: why the last load failed
ImageLoadedCommand	ICommand?	null	Invoked with ImageLoadedEventArgs
ImageFailedCommand	ICommand?	null	Invoked with the exception

Events: ImageLoaded, ImageFailed. Method: ReloadAsync().

Not Loaded

The events are ImageLoaded and ImageFailed, not Loaded/Failed. VisualElement already declares a Loaded event, and shadowing it would silently break anything relying on the base member.

Blazor

Parameter	Type	Default	Description
Uri	string?	null	The image to load
PlaceholderUri	string?	null	Artwork shown before and during the load
ErrorUri	string?	null	Artwork on failure. A built-in glyph is used when neither this nor ErrorContent is set
Alt	string?	null	Alt text
ObjectFit	string	contain	CSS object-fit
FadeInDuration	int	150	Fade-in milliseconds
LoadingContent	RenderFragment<ImageLoadProgress>?	null	Replaces the ring; context is the live progress
ErrorContent	RenderFragment<ImageLoadProgress>?	null	Replaces the error artwork
RingSize	double	48	Ring diameter in px
ShowProgressText	bool	true	Percentage inside the ring
RingColor / RingTrackColor / ProgressTextColor	string	theme vars	CSS colours
DisableProgress	bool	false	Skip the streamed fetch; let the browser load the URL directly
ErrorGlyph	string	🖼	Glyph used when no error artwork is supplied
CssClass	string?	null	Extra classes on the wrapper

Callbacks: ImageLoaded, ImageFailed. Method: ReloadAsync().

Custom loading template

ImageLoadProgress exposes State, BytesRead, TotalBytes, Percent (0-1 or null), PercentDisplay (0-100) and IsIndeterminate.

<shiny:ShinyImage Uri="{Binding PhotoUrl}" Aspect="AspectFill" HeightRequest="180">
    <shiny:ShinyImage.LoadingTemplate>
        <DataTemplate x:DataType="shiny:ImageLoadProgress">
            <VerticalStackLayout Spacing="6" HorizontalOptions="Center" VerticalOptions="Center">
                <Label Text="{Binding State}" FontAttributes="Bold" />
                <shiny:ProgressBar Value="{Binding PercentDisplay}"
                                   IsIndeterminate="{Binding IsIndeterminate}"
                                   WidthRequest="160" />
            </VerticalStackLayout>
        </DataTemplate>
    </shiny:ShinyImage.LoadingTemplate>
</shiny:ShinyImage>

<ShinyImage Uri="@PhotoUrl" ObjectFit="cover">
    <LoadingContent>
        <strong>@context.State</strong>
        <ProgressBar Value="@context.PercentDisplay" IsIndeterminate="@context.IsIndeterminate" />
    </LoadingContent>
</ShinyImage>

ImageService (MAUI)

builder.UseShinyControls(cfg => cfg
    .ConfigureImages(o =>
    {
        o.MaxConcurrentDownloads = 4;                 // past this, requests report Queued
        o.DiskCacheDuration      = TimeSpan.FromDays(7);
        o.CacheDirectory         = null;              // null => <platform cache>/shinyimage
        o.MaxDiskCacheBytes      = 100 * 1024 * 1024; // LRU-trimmed to 80% when exceeded
        o.MemoryCacheEnabled     = true;
        o.MaxMemoryCacheBytes    = 32 * 1024 * 1024;
        o.MaxMemoryItemBytes     = 2 * 1024 * 1024;   // larger images stay disk-only
        o.Timeout                = TimeSpan.FromSeconds(60);
    })
);

Inject IImageService for cache management:

await imageService.ClearCacheAsync();              // both tiers
await imageService.ClearCacheAsync(oneUrl);        // one entry
var bytes = await imageService.GetCacheSizeAsync();
await imageService.PrefetchAsync(nextPageUrls);    // warm the next page of a list

GetAsync returns an ImageResult carrying Success, Bytes, FilePath, ContentLength, Origin (Memory/Disk/Network) and Error. Failures come back as Success == false rather than as a throw — a broken image URL in a list should render error artwork, not unwind the caller.

De-duplication is the point

Bind the same avatar URL into a dozen visible cells and, without de-duplication, a dozen requests go out for one image — each holding a download slot, so the rest of the list stalls behind duplicates of a picture already being fetched. ImageService collapses them into a single download and fans the progress out to every waiting control.

Bring your own HttpClient

For authenticated images — the one thing a plain Image or <img> genuinely cannot do — replace IImageDownloader, not the whole service. Caching, queueing and de-duplication stay where they are.

class AuthenticatedDownloader(HttpClient client, ITokenStore tokens) : IImageDownloader
{
    public async Task<ImageDownloadResult> DownloadAsync(ImageRequest request, CancellationToken ct)
    {
        var msg = new HttpRequestMessage(HttpMethod.Get, request.Uri);
        msg.Headers.Authorization = new("Bearer", await tokens.GetAsync(ct));

        var response = await client.SendAsync(msg, HttpCompletionOption.ResponseHeadersRead, ct);
        response.EnsureSuccessStatusCode();

        return new ImageDownloadResult(
            await response.Content.ReadAsStreamAsync(ct),
            response.Content.Headers.ContentLength,   // this is what makes the ring determinate
            response.Content.Headers.ContentType?.MediaType
        );
    }
}

// builder.UseShinyControls(cfg => cfg.SetCustomImageDownloader<AuthenticatedDownloader>());

Return the body stream unread — the service pumps it and reports progress. HttpCompletionOption.ResponseHeadersRead is what makes Content-Length available before the body arrives.

cfg.SetCustomImageService<T>() replaces the whole pipeline, caching included. Prefer the downloader hook unless you genuinely need your own cache.

Why the memory cache holds bytes, not ImageSource

A stream-backed ImageSource is consumed the first time a handler reads it, and the platform image handle a realized source holds belongs to the view that realized it. Hand the same instance to two cells of a CollectionView and one renders blank. The memory tier therefore caches the encoded bytes; each control builds its own ImageSource.FromStream(() => new MemoryStream(bytes)), which is cheap. The expensive part — the network — is what actually got skipped.

Blazor

There is no cache layer on Blazor, deliberately: the browser already has a well-tuned HTTP cache with correct revalidation, shared across tabs and persisted between sessions. What Blazor does add is progress — remote images are streamed through fetch and a ReadableStream reader so the ring can show a genuine percentage. No <img> element can report this; the DOM has no progress event for images.

CORS

A plain <img> may load a cross-origin image with no server cooperation; fetch may not. When the streamed load is blocked, ShinyImage falls back to letting the browser load the URL directly — the image still appears, the ring just stays indeterminate. Set DisableProgress="true" to take that path deliberately, which is the right trade for same-origin thumbnails.

For authenticated images, register a downloader:

builder.Services.AddShinyImages();                          // routes through the registered HttpClient
builder.Services.AddShinyImages<AuthenticatedDownloader>(); // or your own IImageDownloader

The Blazor IImageDownloader returns ImageDownloadResult(byte[] Bytes, string? ContentType) — a different shape from the MAUI one, because the bytes end up in a blob URL rather than a file.
