Document Editor

•
•

Frameworks

.NET MAUI

Blazor

Two controls, on both hosts:

Control	What it is
DocumentEditor	the lone editing surface — canvas, caret, selection, typing. No chrome.
DocumentEditorView	DocumentEditor dressed as Word — the Office shell’s title bar, ribbon, ruler, panes, status bar and File backstage, all wired to the editor

Same packages as the viewers (Shiny.Maui.Controls.Office / Shiny.Blazor.Controls.Office), same two constraints: MAUI needs UseShinyOffice() (it registers SkiaSharp, plus the Skia canvas SkiaSharp does not ship for the macOS AppKit head), Blazor is WASM-only, and on Blazor the container needs an explicit height.

Open a document for editing

editable: true is required — a read-only document throws on any edit.

using var document = await WordDocument.OpenAsync("report.docx", editable: true);

Blazor

<div style="height:520px">
    <DocumentEditorView Document="document" DocumentChanged="OnChanged" />
</div>

@* or the bare surface, with your own chrome: *@
<div style="height:520px">
    <DocumentEditor @ref="editor" Document="document" />
</div>

MAUI

<office:DocumentEditorView x:Name="Editor" Document="{Binding Document}" />
<office:DocumentEditor x:Name="BareEditor" Document="{Binding Document}" />

The Word window

Behaviour change

DocumentEditorView now wears the Office shell by default, modelled on Word for the web: an accent title bar, the ribbon, a ruler above the page, a navigation pane on the left, a comments pane on the right, a status bar along the bottom and the File backstage. Give the Blazor host more height (≈700px) than the bare ribbon needed. ShowShell="false" puts back exactly the previous layout — the ribbon over the page with its own Undo/Redo and navigation pane.

Every part is wired to the editor already, and each has its own switch:

Part	Switch	What it does
Title bar	ShowTitleBar	AutoSave (AutoSave), Save / Undo / Redo, the document name (DocumentName, default “Document1”, renamed in place), the save status (SaveState; left null it reads “Unsaved changes” once the document is edited), the command search, and the account (UserName, which also signs comments and tracked changes)
Ribbon	ShowToolbar	Word’s tabs (below). File opens the backstage. The right end carries Comments, Editing / Reviewing / Viewing (EditMode: Reviewing switches Track Changes on, Viewing makes the document read-only) and Share (ShareRequested). Home ▸ Styles is the “AaBbCcDd” gallery. Keyboard shortcuts live in each item’s Shortcut, where the command search shows them too
Ruler	ShowRuler	Print Layout only. Shows the caret paragraph’s indents and tab stops and the section’s margins; dragging a marker indents the selected paragraphs, a click adds a tab stop, dragging a margin edge moves it — each one undo step. Tab stops are saved as w:tabs
Navigation pane	ShowNavigationPane	The headings (click to jump; the one the caret is under is marked) and a search box whose Results tab lists every hit with its context. View ▸ Navigation Pane, Ctrl+F and the status bar’s page count open it
Comments pane	ShowCommentsPane	Every comment with its author, date and the text it is anchored to. Click a card to select that text; delete one with its button; New comments on the selection
Status bar	ShowStatusBar	“Page 2 of 5”, “197 words” (“12 of 197 words” with a selection — click for Word Count), the proofing language; Focus; Read / Print / Web view buttons; the zoom slider, − / + and the percentage (which opens the Zoom dialog with page-width / text-width / whole-page presets)

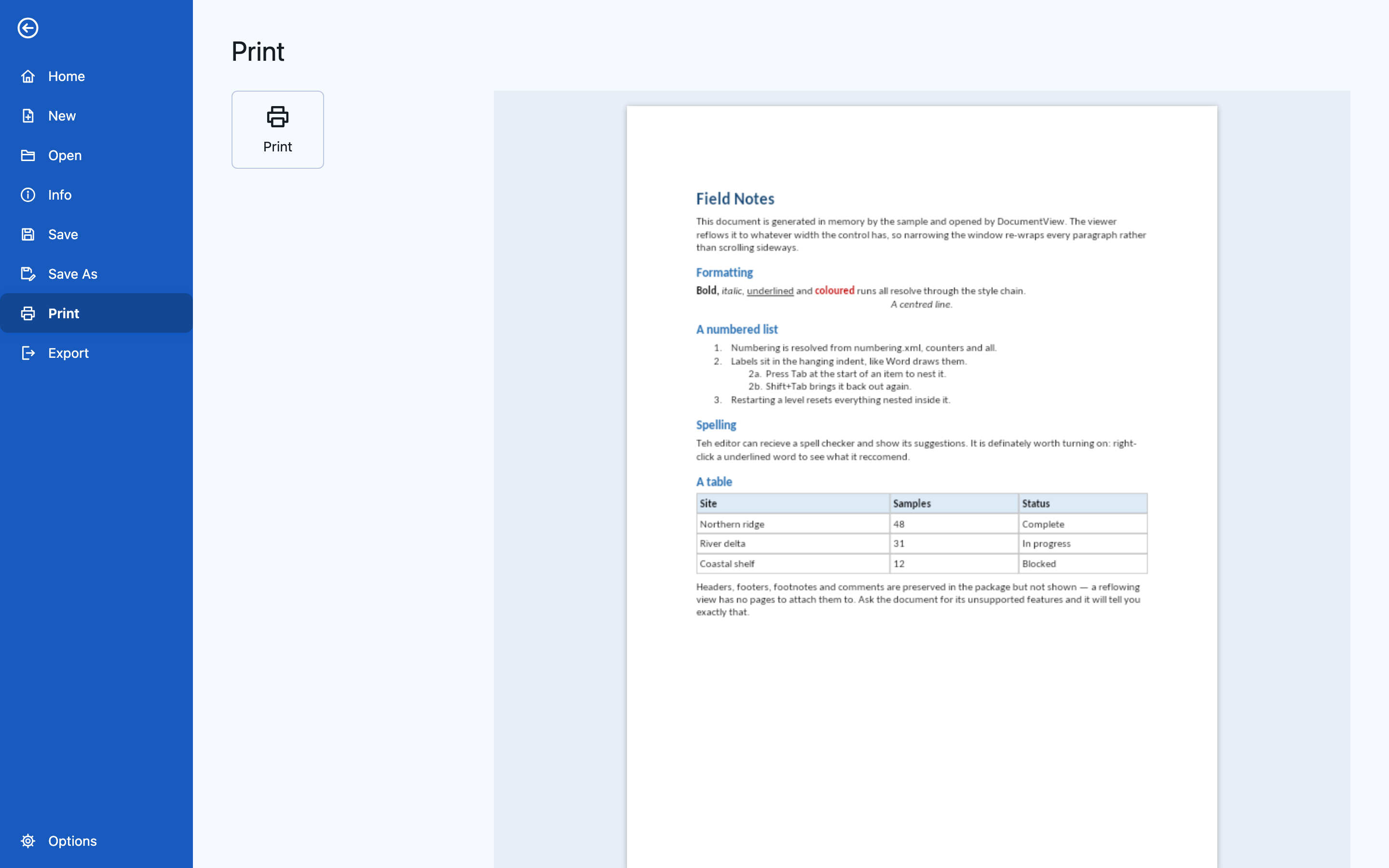

Backstage	File	Home and New offer Templates (null = the built-in Blank, Report and Letter, generated in code), RecentFiles (your list), Info with the document’s statistics, Save, Save As, Print with a preview of the first page, and Export

The command search (CommandIndex) holds the ribbon’s commands plus the ones people look for on tabs not yet opened (Table, Page Break, Link, Comment, Header, Table of Contents, Track Changes, Landscape…). A query that matches no command searches the document instead.

Files are the host’s

The shell reads and writes nothing on its own; these are events. What happens when you leave one unhandled:

Event	Unhandled on Blazor	Unhandled on MAUI
SaveRequested	downloads the .docx	nothing
SaveAsRequested(OfficeFileFormat) / ExportRequested(…)	downloads .docx, .pdf, .txt or .html	nothing
PrintRequested	opens the browser’s print dialog over a PDF of the document	nothing
NewDocumentRequested(OfficeTemplate)	opens the template in place, raises DocumentOpened(WordDocument)	same
OpenRequested, RecentFileSelected(OfficeRecentFile), ShareRequested, DocumentRenamed(string)	—	—

<div style="height:760px">
    <DocumentEditorView Document="document"
                        @bind-DocumentName="name"
                        SaveState="saveState"
                        UserName="Allan Ritchie"
                        RecentFiles="recent"
                        SaveRequested="SaveAsync"
                        RecentFileSelected="OpenAsync" />
</div>

editor.SaveRequested += async (_, _) => await File.WriteAllBytesAsync(path, editor.Document!.ToArray());
editor.ExportRequested += (_, format) =>
{
    if (format.Id == OfficeFileFormats.Pdf.Id)
    {
        using var file = File.Create(Path.ChangeExtension(path, ".pdf"));
        editor.ExportPdf(file);
    }
};

PDF

ExportPdf(Stream) on both views — or DocumentPdfExporter.Export(document, stream, options) in Shiny.Controls.Office.Skia for a document with no view — writes one PDF page per printed page. The document is laid out afresh in print layout at 100%, whatever the view is showing, and drawn by the same DocumentPainter as the screen, so headers, footers, footnotes, page colour and the text watermark come along and the editing overlays (caret, selection, squiggles, comment balloons) do not. Text stays text, with the fonts embedded. It works on WebAssembly. DocumentPdfExporter.RenderPagePng(document, page, scale) renders one page as a PNG — the backstage’s print preview.

Building your own chrome

Everything the view wires up is public: Shiny.Controls.Office.Shell.WordShell turns the controller into what the shell parts take (headings, search results, styles, ruler indents and tab stops in points, view-mode ids, document info, an HTML rendering), and the controller has CurrentTabStops / SetTabStops, GoToComment(id) and CommentedText(comment). WordTemplates builds the three templates.

On MAUI the shell is built once and parts are shown and hidden rather than added later, so the AppKit head renders it; lists that change after layout (headings, comments, status text) may not repaint there until the window is resized.

Word’s ribbon

Every command below is a method on DocumentEditorController first — the ribbon on each host is a thin layer over it — so a host with its own chrome gets all of it without the ribbon.

Behaviour change

The ribbon is organised into Word’s tabs and the tab strip is on by default on both hosts (ShowRibbonTabs). Proofing moved from Home to Review, and zoom moved from Layout to View. A host that turned the strip off to show a single row of Home commands should set ShowRibbonTabs="False" explicitly.

Tab	Groups	Details
Home	Clipboard (Paste ▸ Keep Text Only, Cut, Copy, Format Painter) · Font (font, size, Grow/Shrink, Change Case, Clear Formatting, B I U S, subscript, superscript, colour, highlight) · Paragraph (bullets, numbering, multilevel, indent −/+, Show/Hide ¶, alignment, line spacing, shading, borders) · Styles · Editing (Find, Replace, Select All)	Formatting & Editing
Insert	Pages (Blank Page, Page Break, Section Break) · Tables · Illustrations · Links (Link, Bookmark, Remove Link) · Comments · Header & Footer (Header, Footer, Page Number) · Text (Date & Time) · Symbols (Symbol, Horizontal Line)	References & Links, Objects
Design	Page Background (Watermark, Page Color)	Page Layout & Views
Layout	Page Setup (Margins, Orientation, Size, Columns, Breaks) · Paragraph (indent, spacing before/after)	Page Layout & Views
References	Table of Contents (Insert, Update Table) · Footnotes (Insert Footnote, Next Footnote)	References & Links
Review	Proofing (Spelling, previous/next misspelling, Word Count) · Comments (New, Delete, Previous, Next, Show) · Tracking (Track Changes) · Changes (Accept, Reject, Previous, Next)	Comments & Track Changes
View	Views (Read Mode, Print Layout, Web Layout) · Show (Navigation Pane, Formatting Marks) · Zoom	Page Layout & Views

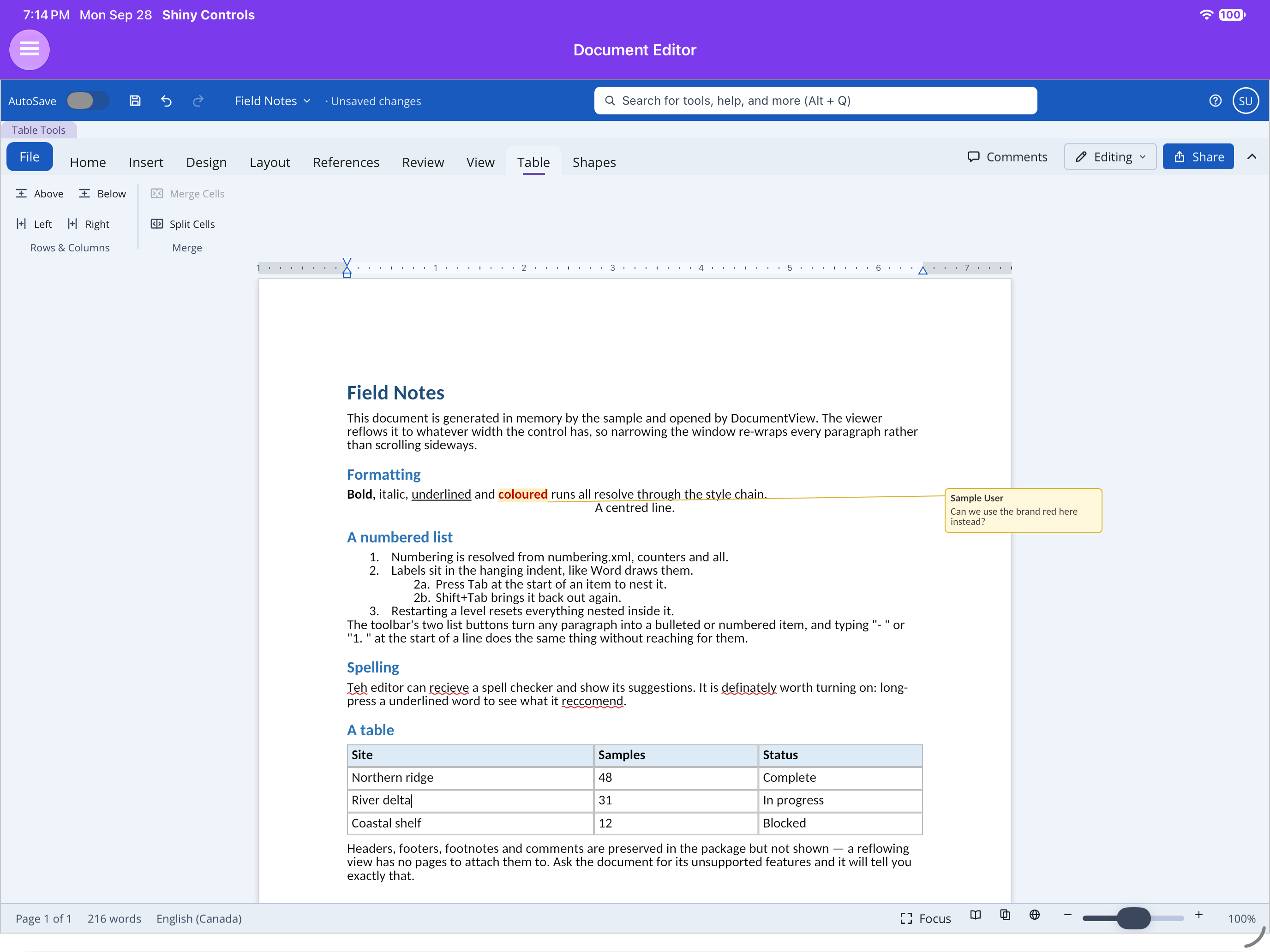

Table (contextual)	Rows & Columns (Insert Above/Below/Left/Right, Delete Rows/Columns/Table) · Merge (Merge Cells, Split Cells)	Tables

The File button opens the backstage. It still raises FileRequested on MAUI and FileClicked on Blazor; with the shell off it is shown only when one of those is wired (ShowFileButton on MAUI), as before. Below 600px wide the ribbon runs in Simplified mode — one dense row. Undo and redo sit in the title bar (or the ribbon’s quick access row with the shell off).

Positions index the story

Breaking change

DocumentPosition.Block now indexes WordDocument.Paragraphs — every paragraph in reading order, table cells included — not WordDocument.Blocks. That is what lets the caret go into a table cell. Blocks is still the top-level list the layout walks. Code that stored a block index, or used one to index Blocks, must map between the two:

var top  = document.TopBlockOf(position.Block);   // story paragraph → top-level block
var para = document.FirstParagraphOf(top);        // top-level block → its first story paragraph
var cell = document.CellOf(position.Block);       // the table cell a paragraph is in, or null

The toolbar is composed from what each host has

Both hosts fill the same slots with the same core controls — FontPickerButton, FontSizePickerButton and ColorPickerButton exist on MAUI and Blazor. Only the bar around them differs:

• MAUI has no toolbar control, so DocumentEditorView builds a scrolling row of MAUI primitives and drops the pickers into it. Do not emit shiny:ShinyToolbar in XAML.
• Blazor composes ShinyToolbar, with the row inside it as its own flex container.

The API and behaviour match on both; only the internals differ.

One icon set, no colour

Every plain button on the Word and PowerPoint toolbars, on both hosts, draws from a single monochrome stroked icon set defined once in Shiny.Controls.Office.Shared — a 24x24 grid at one weight. MAUI paints it onto a GraphicsView; Blazor writes it out as inline SVG stroked in currentColor. There is one definition of each mark, so the two hosts cannot drift.

What that replaced was a mixture: styled letters for bold and italic, geometric unicode for the alignment and undo controls, and emoji for the picture and delete buttons. The emoji are the reason it had to change rather than a matter of taste — a font paints them in its own colour, size and weight, so those two buttons could not be tinted, did not dim with a disabled button and looked different on every platform. Geometric unicode has the milder form of the same problem, plus tofu on Android fonts that lack the character.

The geometry is stored as drawing commands, not an SVG path string. MAUI’s PathBuilder has real gaps parsing a d attribute — implicit line-tos become move-tos, run-together decimals truncate — and it throws nothing, so artwork authored as a path string can look perfect in a browser and draw a stump on a device. Neither host parses anything here.

The pickers are the deliberate exception: font, font size, text colour and the highlight swatch have to show what they are currently set to, which is the one thing a monochrome icon cannot do. The highlight split button keeps the shared A-over-a-bar mark and tints only the bar with the colour it would apply.

Icon-only buttons get a tooltip on desktop and web

Every button on these bars is icon only, so each is wrapped in Shiny’s own Tooltip naming what it does — the browser’s title is slow to appear, cannot be themed and is unreachable from a keyboard.

Platform	Details
Blazor	on by default. ShowToolbarTooltips="false" falls back to the native title.
MAUI	on for desktop only: Windows, Mac Catalyst, macOS and the GTK/plain-.NET head. Off on iOS and Android, because the tooltip opens on hover and there is no hover on a touch screen; a long-press tooltip would compete with the tap the button exists for.

<DocumentEditorView Document="document" ShowToolbarTooltips="false" />

<office:DocumentEditorView Document="{Binding Document}" ShowToolbarTooltips="True" />

Both hosts always set an accessible name on the button — aria-label on Blazor, SemanticProperties.Description on MAUI — whatever the tooltip setting is. A tooltip is not what a screen reader reads.

Driving it

Everything lives on the shared controller, identical on both hosts:

var c = editor.Controller;          // DocumentEditorController

c.InsertText("hello");
c.InsertParagraph();                 // Enter
c.DeleteBackward();                  // Backspace
c.Move(CaretMove.WordRight, extend: true);
c.SelectAll();

c.ToggleBold(); c.ToggleItalic(); c.ToggleUnderline(); c.ToggleStrikethrough();
c.SetFontFamily("Cambria");
c.SetFontSize(14);                   // points
c.SetTextColor(new ArgbColor(255, 0xC0, 0, 0));
c.SetAlignment(TextAlignment.Center);

c.ToggleBulletList(); c.ToggleNumberedList();
c.ChangeListLevel(1);                // nest a list item; -1 un-nests
c.HandleTab(shift: false);           // what the Tab key does, wherever the caret is

c.Undo(); c.Redo();
c.CaretFormat;                       // what a toolbar should show as active
c.Selection.Range;

Lists have a page of their own — nesting, the compounding 1a labels, and what typing - does: Bulleted & Numbered Lists.

Saving is the same as everywhere else — and an unedited document still saves byte-identical:

await document.SaveAsAsync("edited.docx");

Page margins

The document’s own margins, set for the whole document and undoable in one step:

c.PageMargins;                                                // what it is set to now, pixels at 96dpi
c.SetPageMargins(PageMargins.Narrow);                         // Normal / Narrow / Moderate / Wide
c.SetPageMargins(PageMargins.FromInches(1, 1.25, 1, 1.25));   // left, top, right, bottom
c.SetPageMargins(left: 96, top: 96, right: 96, bottom: 96);   // pixels; header/footer distances kept

Both toolbars carry a page-margins button — an action sheet on MAUI, a popover on Blazor — offering Word’s four presets, with the one the document already matches marked. That gallery is PageMarginPresets.All (name, description, margins) in Shiny.Controls.Office.Shared, so the two hosts cannot drift; use it rather than a list of your own.

PageMargins also carries Header and Footer: the distance from the page edge to the header and footer, which sit inside the top and bottom margins rather than adding to them — which is why a header can appear without moving the body text at all. PageSetup.Margins reads them off an open document and PageSetup.WithMargins writes them onto a copy.

Two things worth knowing:

• Only DocumentPageLayout.Print can show it. A reflowed column has no paper to inset content from, so it keeps its cosmetic gutter. The change is still written to the document and still saved, exactly as a page break is — it simply has nowhere to appear until the view is showing pages.
• Undo is total. The whole w:pgMar element is captured before the write, so a document that never had one goes back to not having one, and anything else it carried — a binding gutter above all — survives.

Keyboard input

Blazor: complete. Typing goes through beforeinput, so IME composition, autocorrect, dictation and paste all work. Arrows, Home/End, Ctrl/Cmd+B/I/U, Ctrl/Cmd+Z and Shift+Ctrl/Cmd+Z are wired.

MAUI: typing works — a hidden Entry gives the platform keyboard and IME somewhere to send text. Physical keys do not, because MAUI exposes no portable key-down event. Route them yourself:

Editor.HandleKey(EditorKey.Left, shift: true);
Editor.HandleKey(EditorKey.Undo, control: true);

A desktop host adds its own platform hook (NSEvent on macOS, KeyDown on Windows) and calls that. Tapping, selection, typing and every toolbar command work without it.

Find

Home ▸ Find carries a box, a 3/12 readout and a pair of arrows. Typing searches as you type and selects the first hit at or after the caret; the arrows walk the rest and wrap at either end. Every paragraph the caret can reach is searched — table cells included, now that positions index the story. Ctrl+H opens Replace; see Formatting & Editing and Find in Office Documents.

Keyboard shortcuts

Both hosts resolve keys through the shared WordShortcuts.Resolve(key, ctrl, shift, alt) table, so they cannot disagree. On MAUI a desktop host routes keys in with DocumentEditorView.HandleShortcut(key, ctrl, shift, alt) (MAUI has no portable key-down event); Blazor handles them itself.

Keys		Keys
Ctrl+B / I / U	Bold / italic / underline	Ctrl+E / L / R / J	Centre / left / right / justify
Ctrl+C / X / V	Copy / cut / paste	Ctrl+Shift+> / <	Grow / shrink font
Ctrl+Z / Y	Undo / redo	Ctrl+= / Ctrl+Shift+=	Subscript / superscript
Ctrl+F / H	Find / replace	Ctrl+Enter	Page break
Ctrl+K	Hyperlink	Ctrl+1 / 5 / 2	Line spacing 1 / 1.5 / 2
Ctrl+Alt+1..3	Heading 1-3	Ctrl+Shift+N	Normal style
Ctrl+Space	Clear formatting	Ctrl+M / Ctrl+Shift+M	Indent / outdent
Ctrl+Shift+C / V	Copy / paste formatting	Shift+F3	Change case
Ctrl+Alt+M	New comment	Ctrl+Shift+E	Track changes
Ctrl+Shift+G	Word count	Ctrl+Shift+8	Show/hide ¶

DocumentEditorController.Execute(WordCommand) runs the engine’s commands; the ones that need the host’s UI or clipboard — Find, Replace, Hyperlink, New Comment, Word Count, Copy, Cut, Paste — return false (see WordShortcuts.IsHostCommand) and surface as ShortcutRequested on the surfaces.

Spell check

On by default, and on MAUI the checker is the platform’s own:

Platform	Checker
iOS, Mac Catalyst	UITextChecker
macOS (AppKit)	NSSpellChecker
Android	SpellCheckerSession via text services
Windows	ISpellChecker (COM)
Blazor / plain .NET	none — supply one

Nothing has to be registered: referencing Shiny.Maui.Controls.Office installs it. Using the platform’s checker rather than shipping a dictionary is the point — it is the user’s dictionary, so words they have already taught their keyboard are known, and Add to dictionary writes back to it and is shared with every other app on the device.

Misspellings get a red wavy underline. Right-click, or long-press on touch, for the corrections along with Ignore and Add to dictionary. Applying a correction is a single undo step.

Blazor has to be given one

The browser spell-checks its own editable elements and exposes neither the results nor the suggestions to script — and a canvas is not an editable element in the first place. So there is nothing to call, and Blazor defaults to no checking:

<DocumentEditorView Document="document" SpellChecker="myChecker" SpellCheckEnabled="true" />

Supplying your own

Derive from SpellCheckerBase — it already handles the ignore list and language defaulting, leaving two methods:

public sealed class MyChecker : SpellCheckerBase
{
    public override bool IsAvailable => true;

    protected override ValueTask<IReadOnlyList<SpellingError>> CheckCoreAsync(
        string text, string language, CancellationToken cancellationToken) => ...;

    protected override ValueTask<IReadOnlyList<string>> SuggestCoreAsync(
        string word, string language, CancellationToken cancellationToken) => ...;
}

Then per control (SpellChecker), or globally, before the first editor is constructed:

SpellCheckers.Default = new MyChecker();

Registration uses SetDefaultIfUnset, so an explicit choice always wins and the platform checker is never even constructed.

SpellingTokenizer is public and worth reusing: it skips acronyms, camelCase, numbers, URLs, email addresses and paths — the things every dictionary flags and no reader wants underlined.

Notes

• Checking is per paragraph, cached on the paragraph’s text, and limited to the paragraphs on screen. Scrolling re-checks nothing already seen; editing re-checks one paragraph.
• Calls are debounced by 500 ms. A platform checker is interop — a service round trip on Android — and a half-typed word is not a mistake.
• ⚠️ IsAvailable is false when there is no checker or no dictionary for the language. Check it before telling a user spelling is on.
• Set SpellCheckEnabled / IsSpellCheckEnabled to false to turn it off entirely.

Not implemented

• Columns are written and saved (w:cols) but the page view still lays text out in a single column.
• Sections — breaks paginate and each section’s own page setup is written, but every page is drawn on the last section’s paper size and margins.
• Headers and footers are set as a line of text rather than edited in place on the page.
• Tracked formatting changes (w:rPrChange) and tracked paragraph joins are not recorded; existing ones are preserved.
• Endnotes are read and numbered but not drawn.
• Grammar checking. Android reports grammar errors and they are deliberately ignored, so all four platforms behave the same.
• Floating (anchored) objects — everything inserts inline; see Objects.
• Everything the viewer does not render is still not rendered — see Document Viewer.

Screenshots

.NET MAUI (iPad)	Blazor WebAssembly

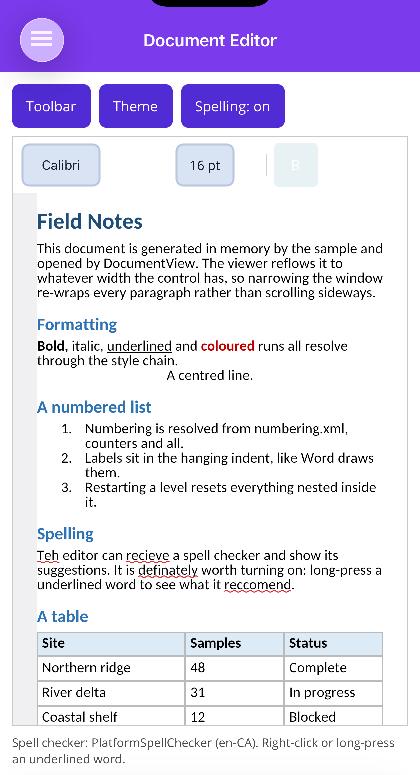

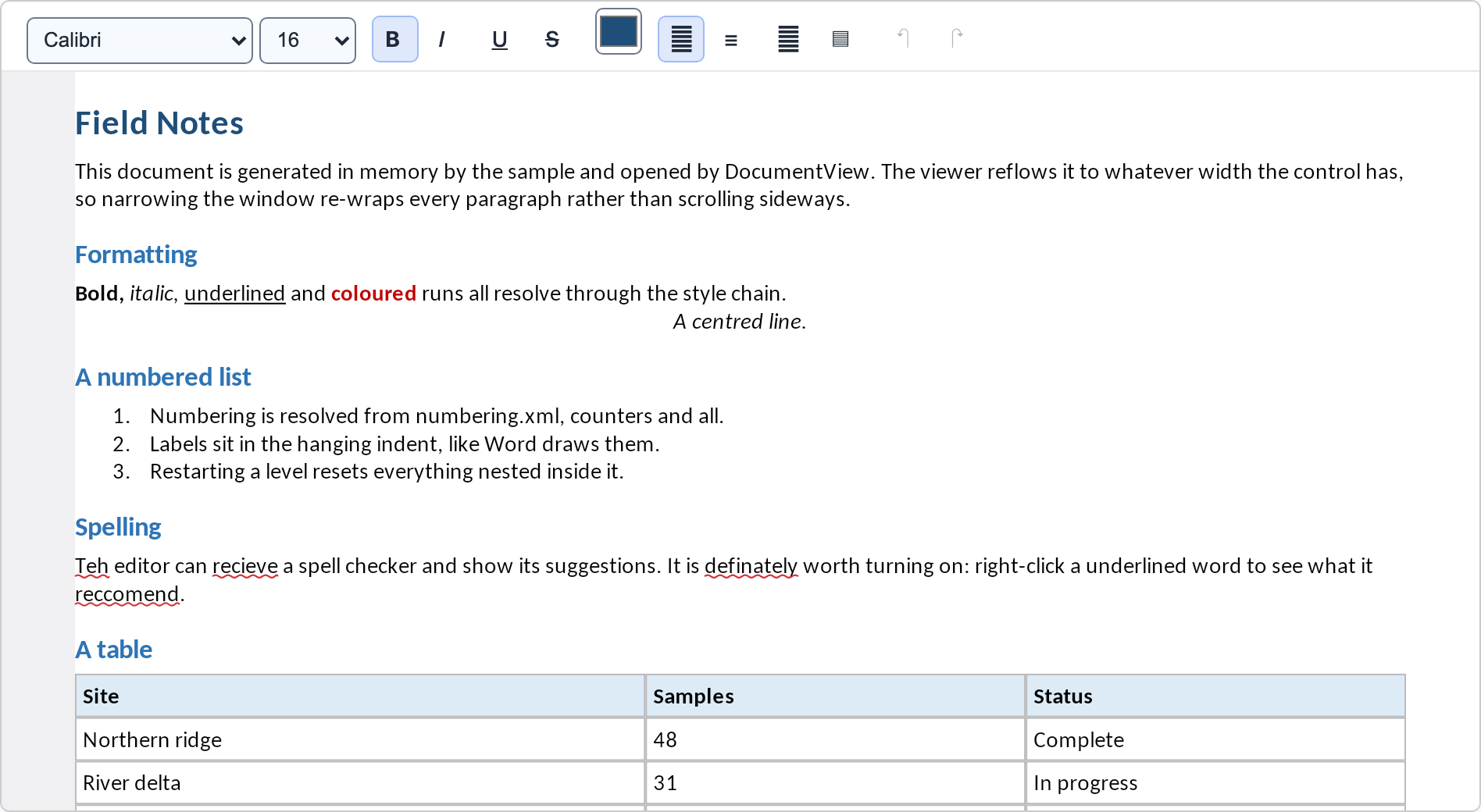

The spelling squiggles come from the platform spell checker on MAUI — UITextChecker on iOS, registered with no setup — and from the sample’s own ISpellChecker on Blazor, where the web has none.
