Transport Bar

The transport bar is drawn by Shiny rather than handed to the platform. That is not a stylistic preference — it is what makes the rest of this page possible.

Native transport UI is all-or-nothing on every platform but Windows: iOS’s AVPlayerViewController exposes a single showsPlaybackControls, Android’s Media3 PlayerControlView lets you drop a couple of buttons but not the seek bar, GTK’s GtkMediaControls has no options at all, and HTML5’s controlsList can only subtract download / fullscreen / cast, and only in Chromium. Only WinUI’s MediaTransportControls has per-element visibility. So a control that promised “hide the volume slider” while using native UI would be honest on exactly one of six targets.

Drawing it also means the player looks identical everywhere and picks up your Shiny theme pack.

Showing and hiding

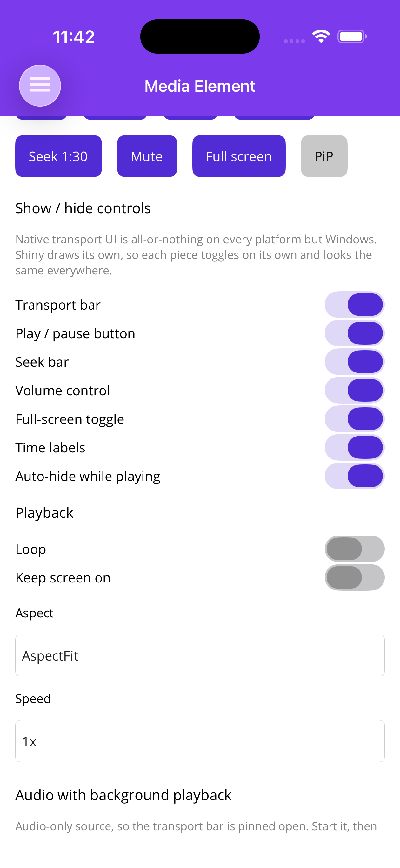

Each piece is an independent bindable property.

<media:MediaElement Source="{Binding ClipUrl}"
                    ShowPlayPauseButton="True"
                    ShowSeekBar="True"
                    ShowVolumeControl="False"
                    ShowFullScreenButton="True"
                    ShowTimeLabels="True" />

Property	Default	Hides
ShowTransportBar	true	the whole bar
ShowPlayPauseButton	true	the play/pause button
ShowSeekBar	true	the scrubber
ShowVolumeControl	true	the mute button and volume slider
ShowFullScreenButton	true	the fullscreen toggle
ShowTimeLabels	true	the elapsed and total time labels
ShowPictureInPictureButton	false	the PiP button

ShowPictureInPictureButton defaults to false because PiP needs a manifest opt-in only the app can make — see Background Playback & PiP. It also hides itself where the platform can’t do PiP at all, as does the volume slider on a backend that refuses programmatic volume (the mute button stays, since muting always works).

Turn ShowTransportBar off entirely to drive playback from your own UI through the commands below.

Auto-hide

AutoHideTransportBar (default true) fades the bar out after TransportBarAutoHideDelay (3 seconds) of no interaction, and a tap on the video brings it back.

It only hides while playing. A paused frame, a stopped one, a failed load and an audio-only track all keep their controls — which is both what every player does and what keeps the buttons reachable to a screen reader. For an audio player, set it false:

<media:MediaElement Source="{Binding EpisodeUrl}"
                    AutoHideTransportBar="False"
                    ShowFullScreenButton="False" />

Styling

Property	Default
TransportBarBackgroundColor	a translucent scrim over the video
ControlColor	white — the bar sits over video, not over your page background
SeekBarColor	the theme’s Shiny.Color.Primary
VideoBackgroundColor	black — behind the video and in the letterbox bars

Leave SeekBarColor unset and the scrubber follows the active theme pack through a dynamic resource, so switching themes at runtime moves it too. Setting it explicitly takes over.

The seek bar

MediaSeekBar is a purpose-built control rather than a reuse of Shiny’s Slider, because a scrubber needs two things a value slider doesn’t have: a second track showing how far the download has buffered ahead of the playhead, and explicit drag signals so the owner can stop writing the player’s position into the thumb while a finger is on it.

It’s public, so a hand-rolled transport bar can use it:

<media:MediaSeekBar Position="{Binding Source={x:Reference Player}, Path=Position}"
                    Duration="{Binding Source={x:Reference Player}, Path=Duration}"
                    BufferedProgress="{Binding Source={x:Reference Player}, Path=BufferedProgress}" />

DragStarted, Seeking and DragCompleted let you update labels live under the finger and only commit the seek on release — scrubbing a remote stream on every pan tick would thrash the buffer.

Commands

Every operation is available as an ICommand, so a view model or a custom bar never needs a code-behind handler.

Command	Does
PlayCommand	start or resume
PauseCommand	suspend in place
StopCommand	halt and rewind
TogglePlayPauseCommand	flip between the two
SeekCommand	move the playhead — see below
MuteCommand	toggle, or set outright with a bool parameter
ToggleFullScreenCommand	flip IsFullScreen
PictureInPictureCommand	detach into a floating window

The plain methods are there too: Play(), Pause(), Stop(), TogglePlayPause(), SeekAsync(), ToggleMute(), ToggleFullScreen(), TryEnterPictureInPictureAsync(), ExitPictureInPictureAsync().

Seek parameters

SeekCommand accepts a TimeSpan, a number of seconds, or a string of either. A bare number is seconds — XAML can only hand a command a string, and TimeSpan.Parse("30") would read that as thirty days, so the presence of a colon is what picks the parser:

<Button Text="Skip to 30s"   Command="{Binding Source={x:Reference Player}, Path=SeekCommand}" CommandParameter="30" />
<Button Text="Skip to 1:30"  Command="{Binding Source={x:Reference Player}, Path=SeekCommand}" CommandParameter="00:01:30" />

An unparseable parameter is ignored rather than seeking to zero.

CanExecute

PictureInPictureCommand.CanExecute is false where the platform can’t do PiP, so a bound button disables itself instead of doing nothing when tapped.

Accessibility

Each glyph button carries a semantic description that follows its state (“Play” ⇄ “Pause”, “Mute” ⇄ “Unmute”, “Enter full screen” ⇄ “Exit full screen”) and a stable automation id that does not — a UI test looking for the play button shouldn’t have to know it is currently called “Pause”. The ids are MediaPlayPauseButton, MediaMuteButton, MediaFullScreenButton and MediaPictureInPictureButton.

The icons are drawn as vector paths rather than Unicode media symbols, which carry emoji presentation on some platforms — rendering full-colour at a different optical size on Android and Windows than on iOS, and ignoring the control’s tint.
