Admin UI (ShinyDocDbMyAdmin)

ShinyDocDbMyAdmin is a phpMyAdmin-style web front end for DocumentDb stores. Connect to a database, browse the documents in it, edit them, run SQL, manage JSON indexes, and move data in and out. No user management, no server administration — just the documents.

It is a Blazor Server app shipped as a container image and nothing else.

docker run -p 8085:8080 -v shiny-docdb-myadmin:/data ghcr.io/shinyorg/shiny-docdb-myadmin

Why no NuGet package?

There is deliberately no dotnet tool form. It came out at ~120 MB — almost entirely native provider binaries for every RID it might run on — to deliver what one image delivers for the platform you are actually on.

Supported providers

Every relational DocumentDb backend:

Provider	Connection	Notes
SQLite	file, uploadable
SQLCipher	file, uploadable	needs the encryption key
DuckDB	file, uploadable	takes an exclusive lock while open
PostgreSQL	server
SQL Server	server
MySQL	server
MariaDB	server
Oracle 23ai+	server
CockroachDB	server

The document stores (MongoDB, Cosmos DB, LiteDB, IndexedDB, …) are deliberately out of scope: this tool works against the shared Id / TypeName / Data / CreatedAt / UpdatedAt envelope over ADO.NET, which only the relational providers expose.

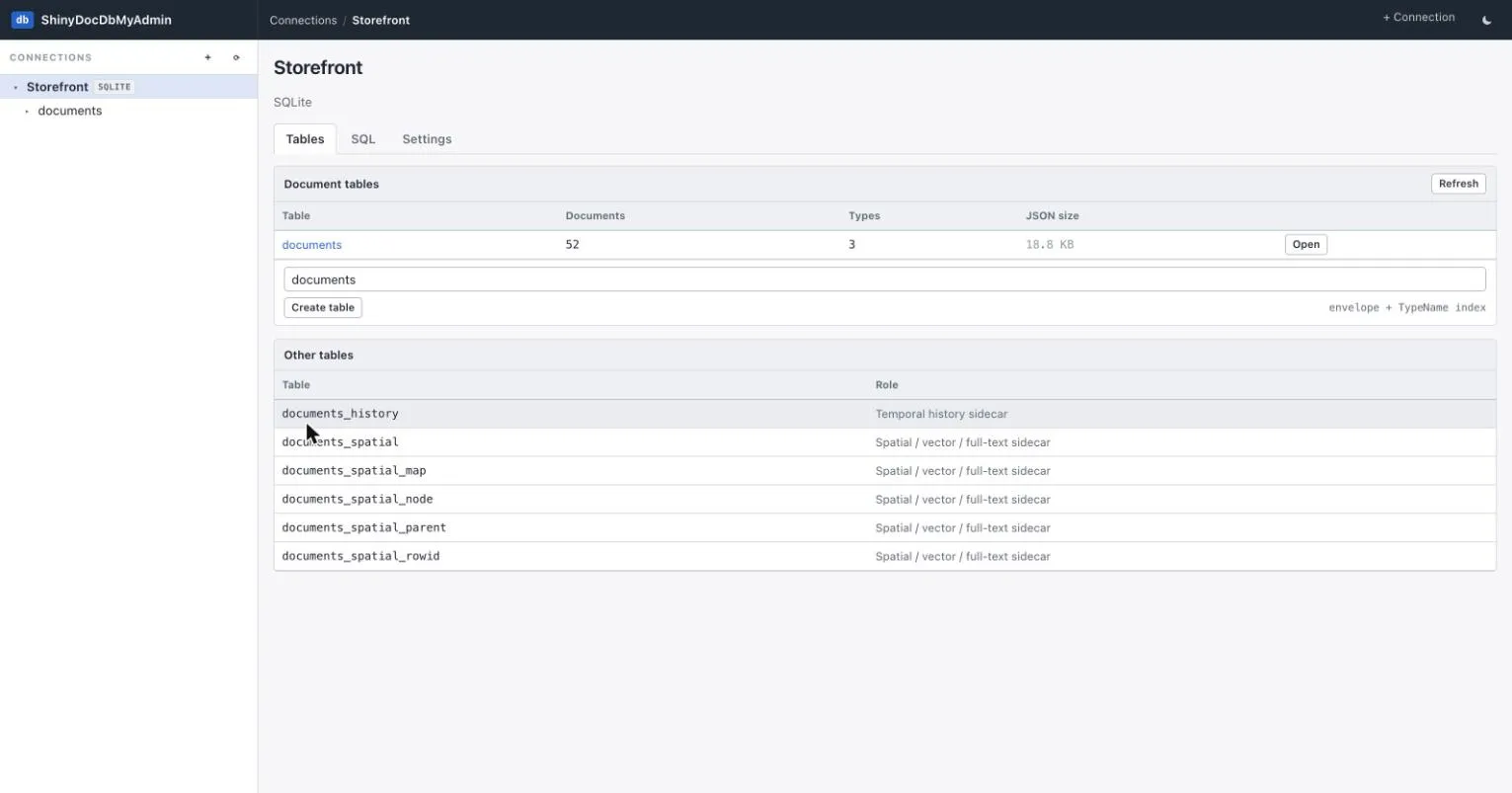

Explorer

Connection → table → TypeName, with live document counts. Tables are classified by probing for the envelope, so temporal/blob/spatial sidecars are recognised and kept out of the way rather than shown as if they were yours to edit.

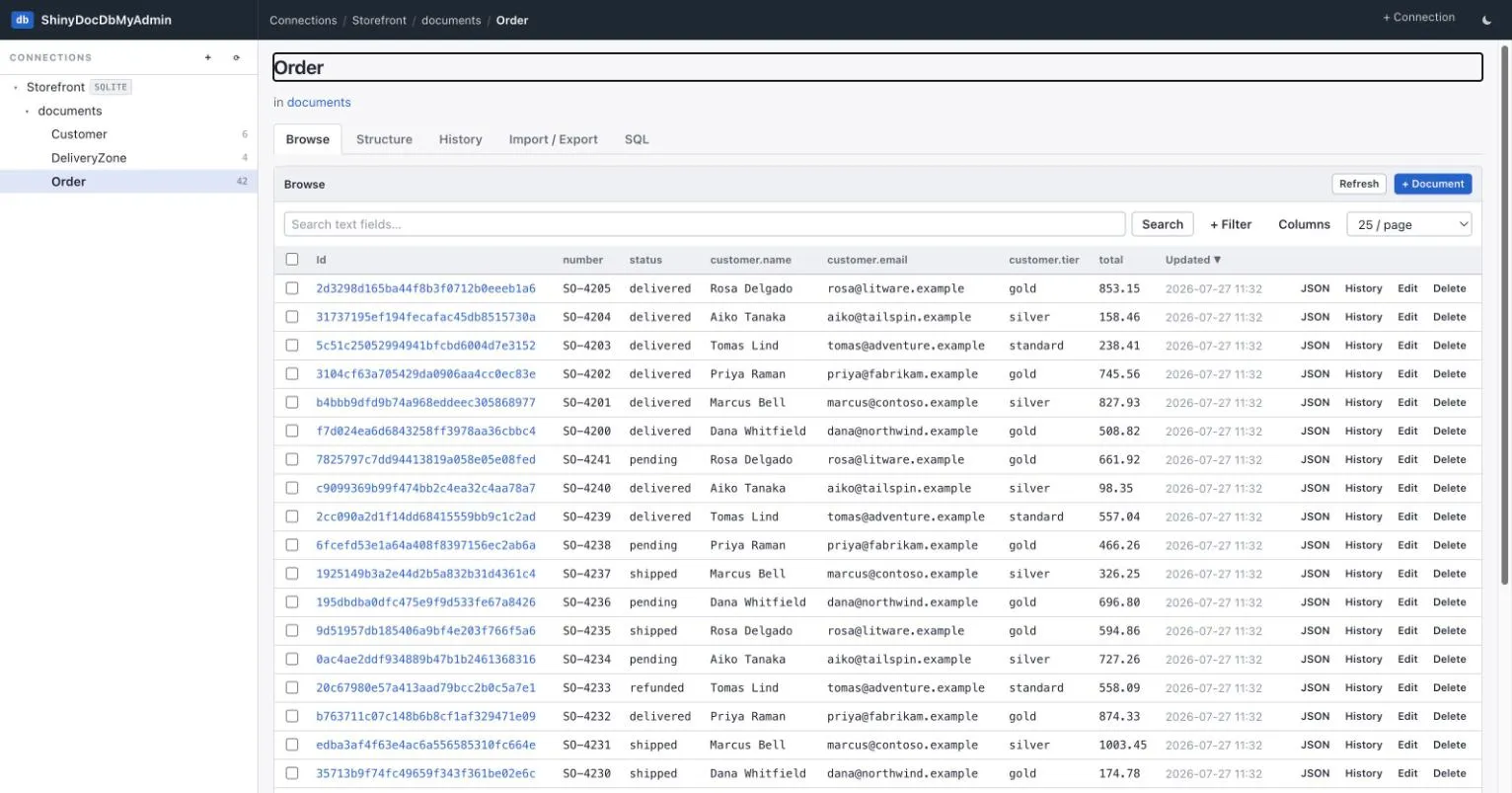

Browse

A paged, sortable grid whose columns are inferred by sampling documents — nested paths like customer.tier become first-class columns. Filter on any envelope column or JSON path (=, ≠, contains, starts/ends with, comparisons, null checks), or quick-search across the string fields.

Numeric filters and sorts compare numerically, so 9 < 10 rather than "9" > "10".

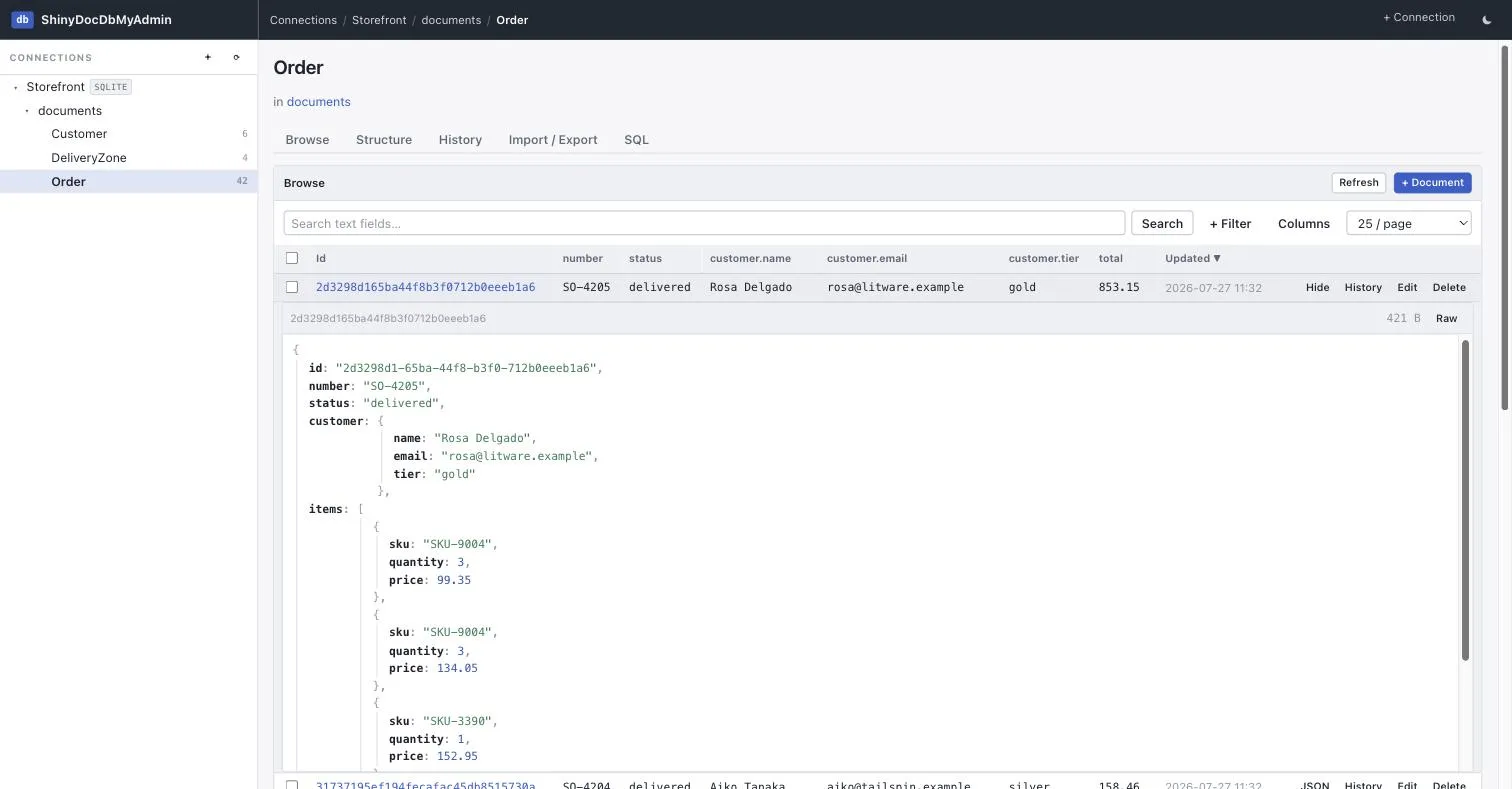

Any row expands into a read-only, syntax-highlighted view of its whole body, with objects and arrays collapsible (native <details> elements, so it works with scripting off) and a toggle to the raw pretty-printed text.

Every value is HTML-escaped on the way out: document content belongs to whoever wrote it, and this markup is rendered raw.

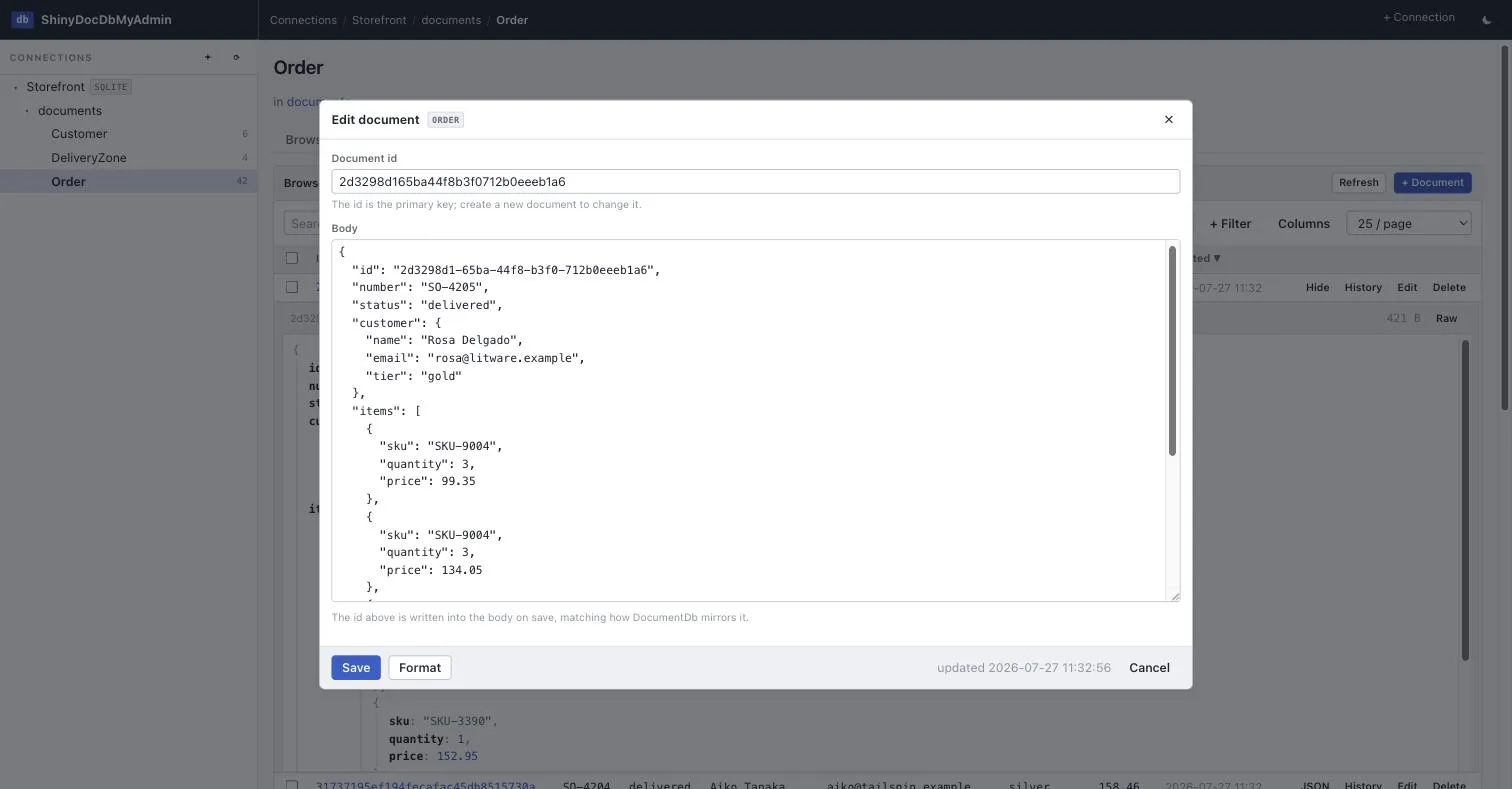

Edit

A JSON editor with format and validation. Insert, edit, duplicate-by-id, single and bulk delete. Deleting a document also clears its blob sidecar rows.

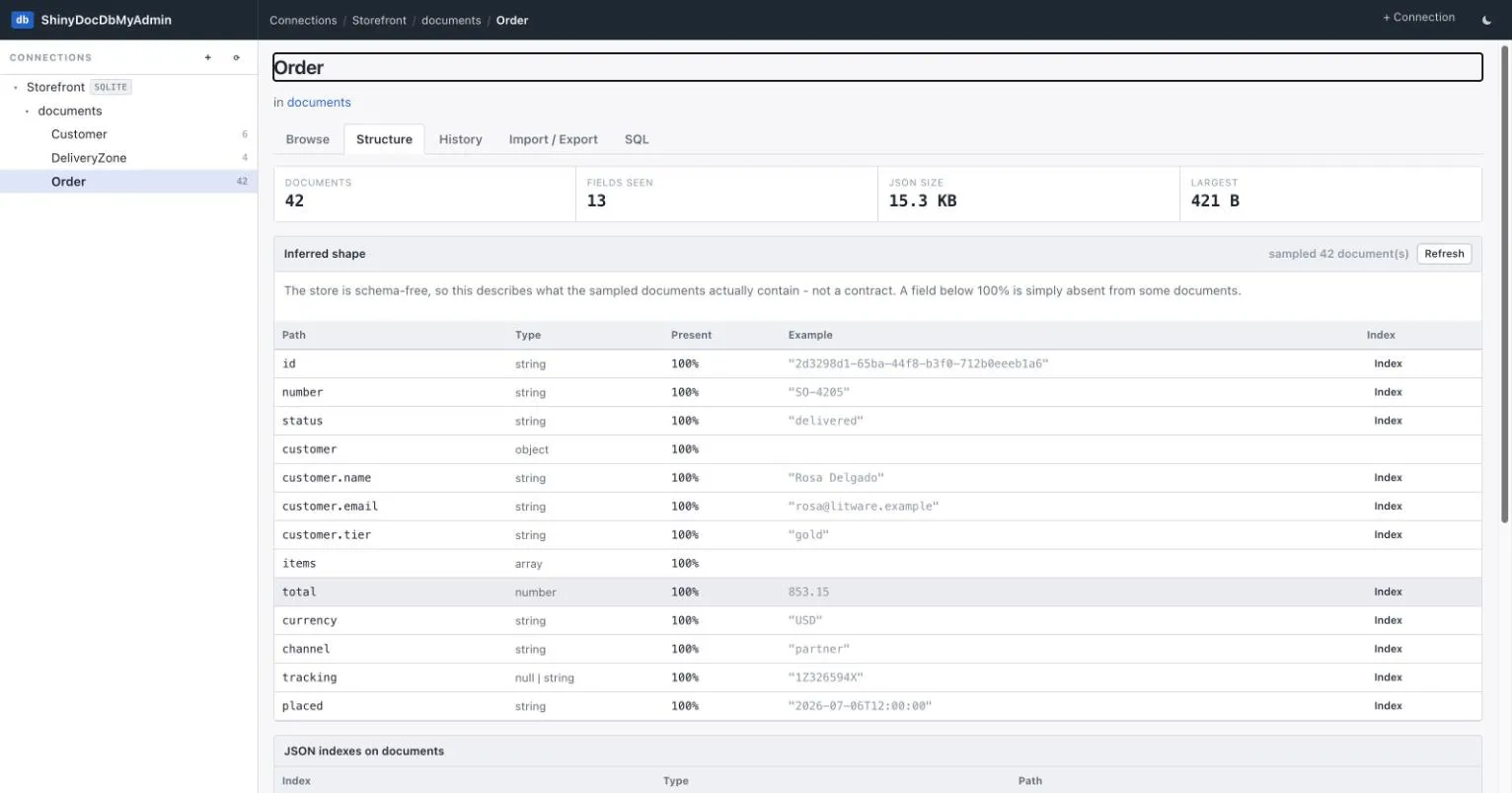

Structure

The inferred shape of a type — paths, types, how often each field is actually present, and examples — plus row and size statistics and one-click create/drop of JSON property indexes, named exactly as DocumentDb names its own.

Because the store is schema-free, this describes what the sampled documents actually contain — it is not a contract. A field below 100% is simply absent from some documents.

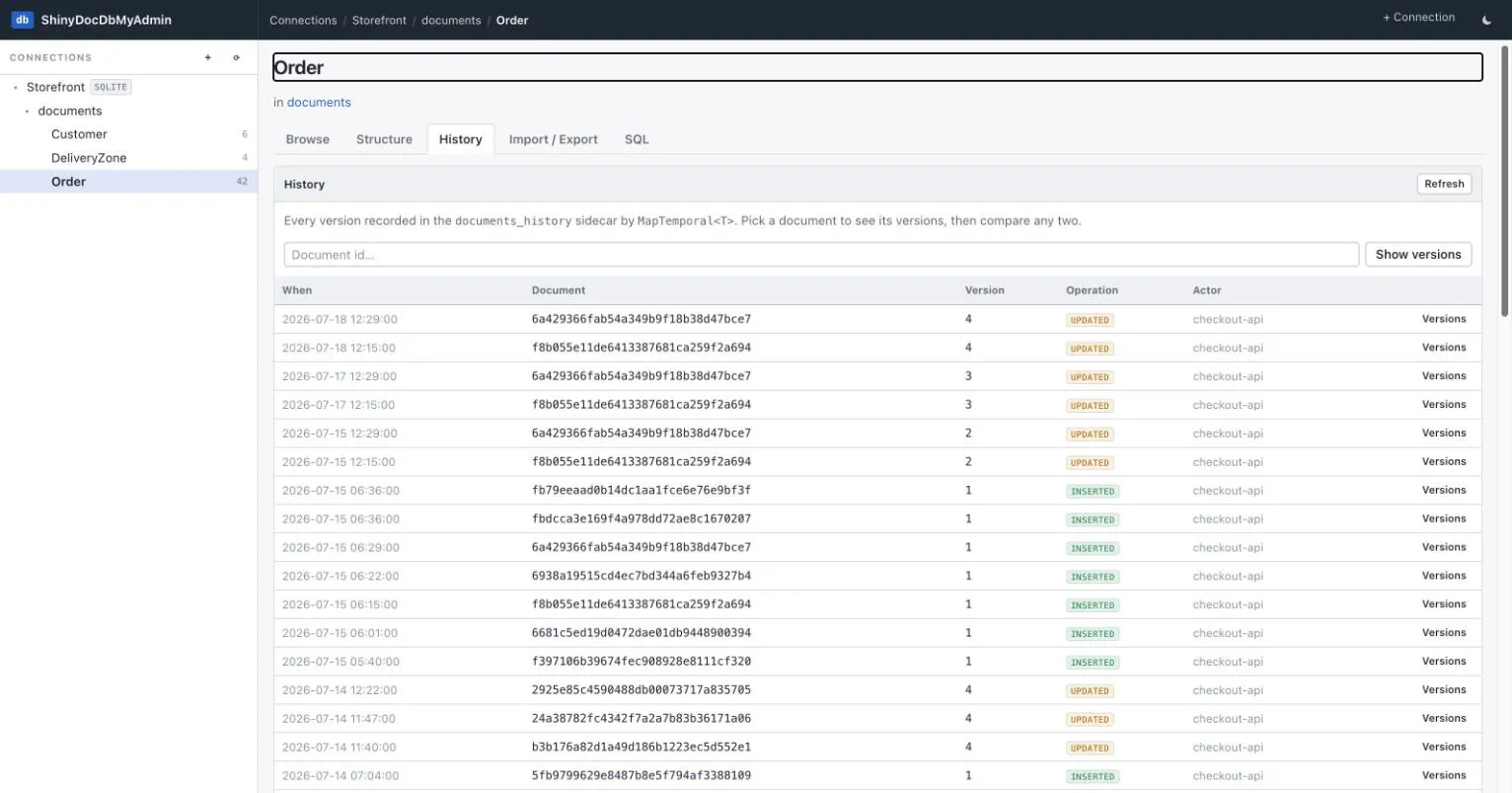

History

Appears when the table has a {table}_history sidecar, written by MapTemporal<T>. It opens on an audit log across the type — what changed, when, and by which actor.

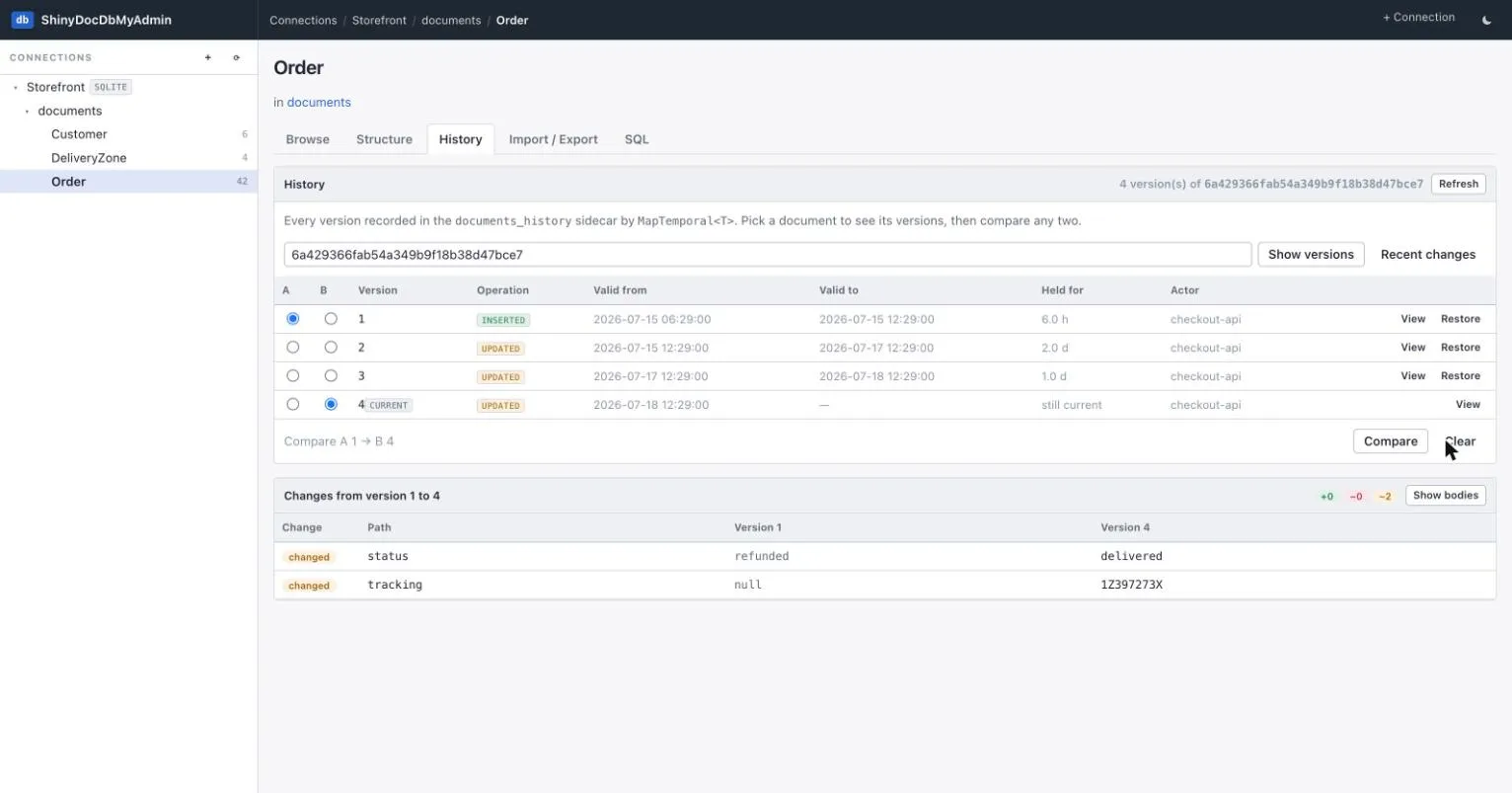

Narrow to one document and you get its versions, each with its operation, the interval it was current, and how long it stood. Pick any two and compare them: a field-by-field list of what was added, removed or changed by dotted path (customer.tier, items[2].price), or the two bodies side by side. A prior version can be restored behind a two-click confirm, which writes it back as the current document.

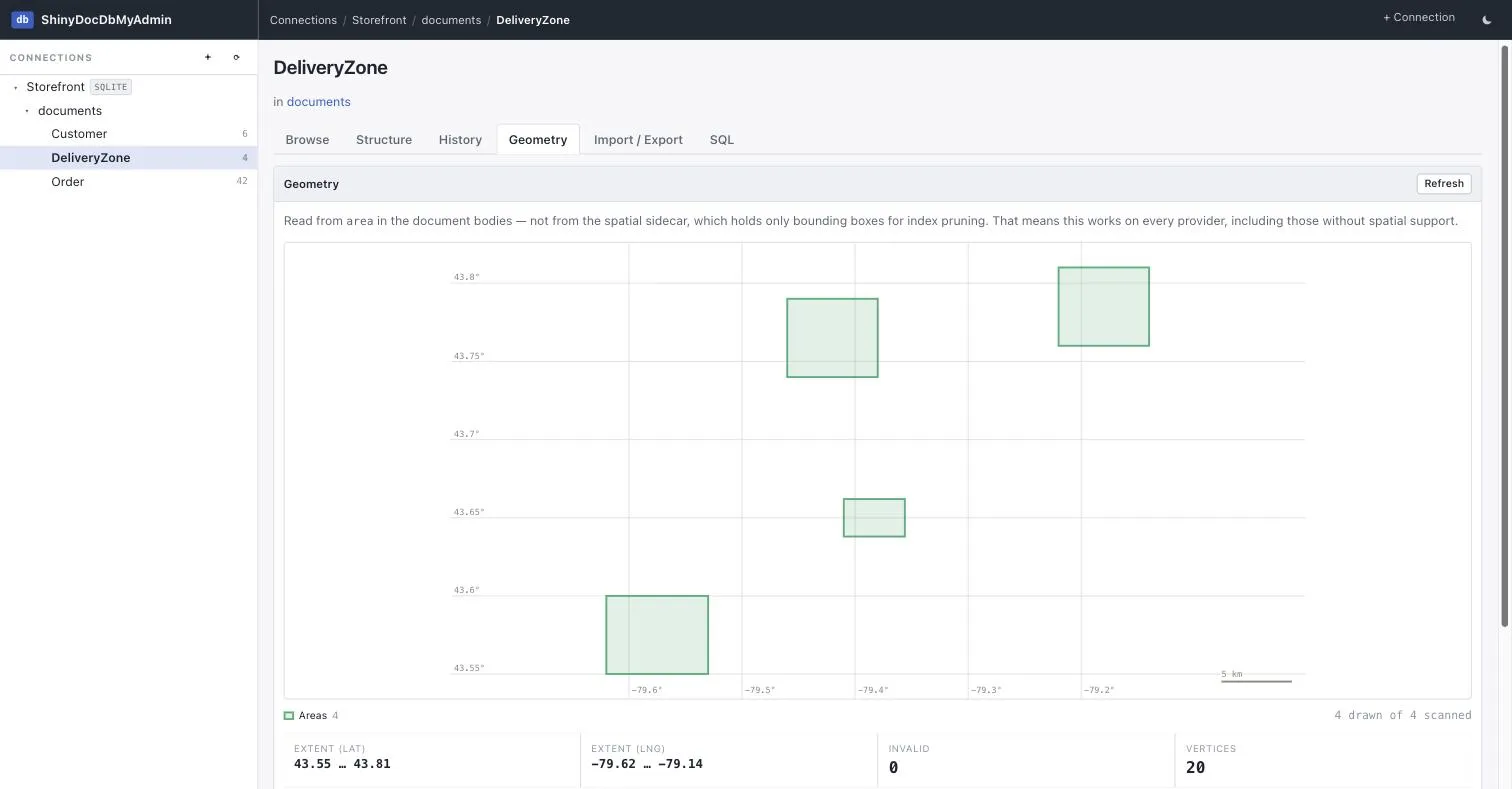

Geometry

Appears when a type stores GeoJSON. Draws the geometries on a server-rendered SVG map with zoom-to-feature and fit-all, and lists vertices, length, area, centroid and OGC validity per document.

It reads from the document body rather than the {table}_spatial sidecar. The sidecar holds only bounding boxes for index pruning and its shape differs per provider, while the GeoJSON in Data is the actual value and is identical everywhere. So this works on every provider, including the ones with no spatial support at all. Parsing goes through the library’s own GeometryJsonConverter, so the tool inherits the real OGC model rather than reimplementing it.

Blobs

Appears when the table has a {table}_blobs sidecar. Lists payloads without ever selecting the blob column, filterable by document id, with inline preview for images and text and delete behind a two-click confirm. Downloads stream over a plain HTTP endpoint rather than crossing the Blazor circuit as base64.

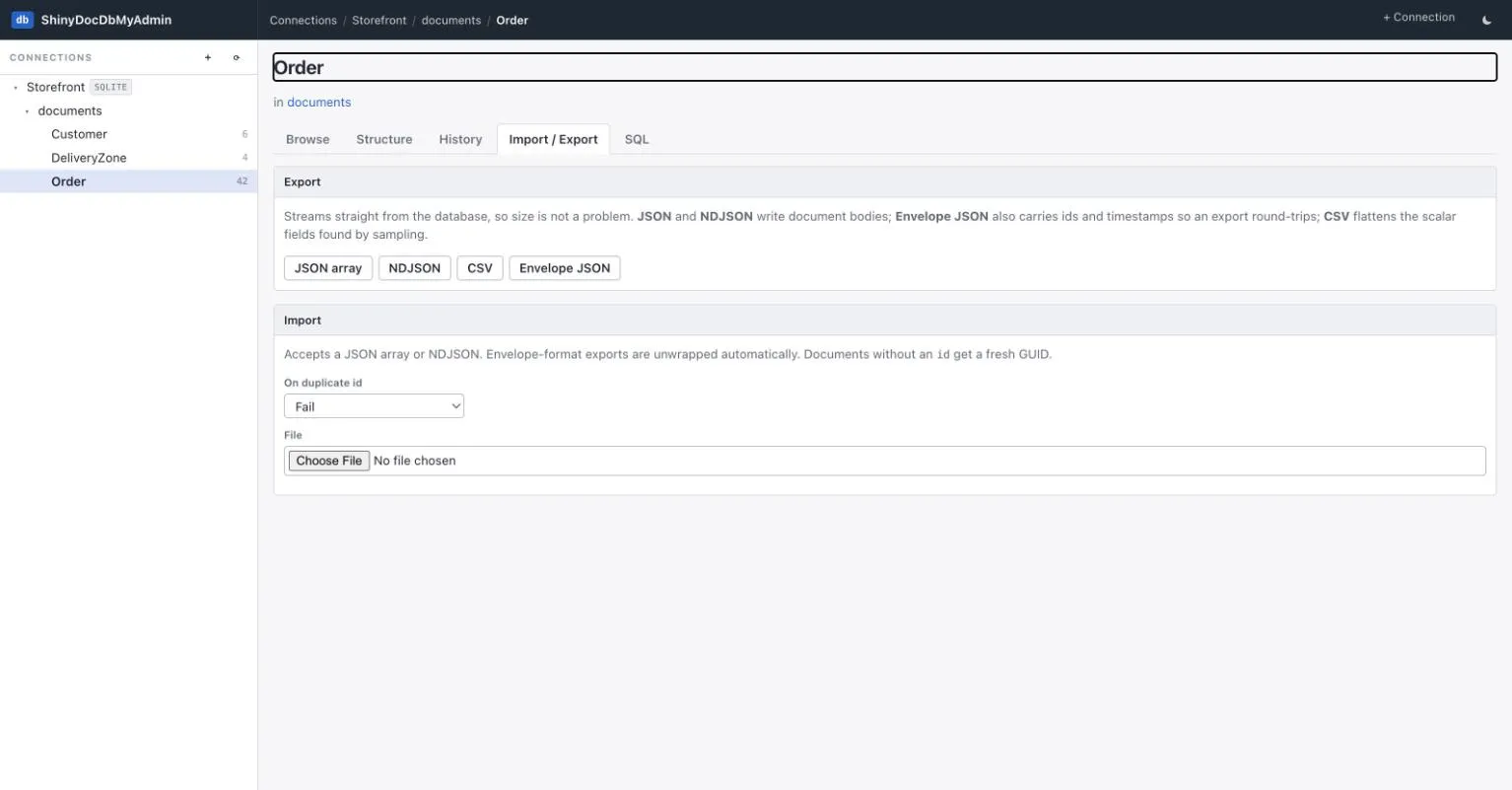

Import / Export

Stream a type out as JSON, NDJSON, envelope JSON (round-trippable) or CSV; import JSON or NDJSON back with fail / replace / skip handling for duplicate ids.

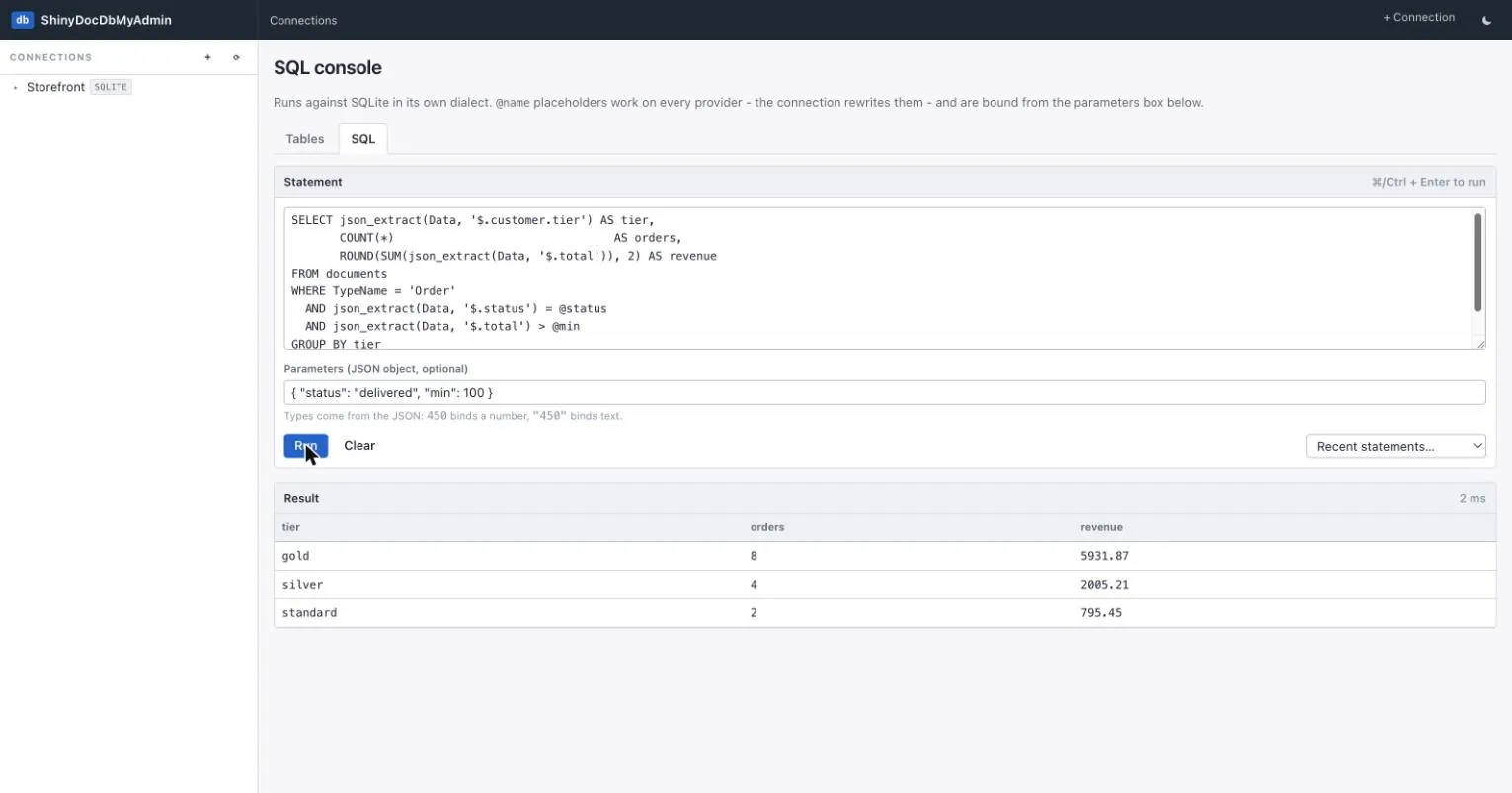

SQL console

Whatever you type, in the target database’s dialect, with @name parameters bound from a JSON box so the types stay honest — 450 binds a number, "450" binds text.

Create

A documents table (using the provider’s own DDL) and a type (by writing its first document), so a database whose store has never run isn’t a dead end.

Running it

The volume holds saved connections, saved queries and uploaded database files; drop it and the UI starts empty every time.

docker run -p 8085:8080 -v shiny-docdb-myadmin:/data ghcr.io/shinyorg/shiny-docdb-myadmin

To reach a database file on your machine, mount its directory and use the container’s path in the connection string:

docker run -p 8085:8080 -v shiny-docdb-myadmin:/data \
  -v /Users/me/databases:/databases:ro \
  ghcr.io/shinyorg/shiny-docdb-myadmin

From a clone of the repo, either build the image or just run the project:

docker build -f src/ShinyDocDbMyAdmin/Dockerfile -t shiny-docdb-myadmin .
dotnet run --project src/ShinyDocDbMyAdmin

In an Aspire AppHost

Shiny.DocumentDb.Aspire.Hosting models this tool as a resource, so it comes up with the rest of your app and every store you reference is already connected:

var store = builder.AddPostgresDocumentStore("orders");

builder.AddDocumentDbAdmin(port: 8085)
       .WithReference(store)
       .WaitFor(store);

WithReference is the same call a consuming service makes: the tool reads the ConnectionStrings:{name}

• Shiny:DocumentDb:{name}:Provider pair the hosting integration already emits. A connection string with no matching provider key is ignored, so a Redis or blob reference in the same AppHost doesn’t turn into a junk connection. Referenced stores show up under a from host badge and can’t be edited or deleted from the UI — they’re declared in the AppHost, so that’s where they change.

It’s the same image either way — running the AppHost and publishing it — tagged to match the hosting package’s own version, so an integration upgrade brings the matching UI with it.

builder.AddDocumentDbAdmin(port: 8085)
       .WithReference(store)
       .WithDataVolume()                                  // keep saved connections across runs
       .WithHostPath("/Users/me/databases", "/databases") // make a file-backed store reachable
       .WithSecretKey(builder.AddParameter("admin-key", secret: true))
       .WithReadOnly()                                    // for anything you didn't create
       .WaitFor(store);

It’s a container, so it reaches the databases the AppHost models over the container network — which Aspire wires up for you. What it cannot reach is a file on your machine: a SQLite, SQLCipher or DuckDB store living at a host path is invisible inside the container unless you mount it, hence WithHostPath.

Configuration

Setting	Environment variable	Default
ShinyDocDbMyAdmin:DataDirectory	SHINYDOCDBMYADMIN_DATA	~/.shinydocdbmyadmin
ShinyDocDbMyAdmin:SecretKey	SHINYDOCDBMYADMIN_KEY	generated into <data>/secret.key
ShinyDocDbMyAdmin:ReadOnly	ShinyDocDbMyAdmin__ReadOnly	false

The data directory holds the tool’s own SQLite document store (connection profiles and saved queries — dogfooding the library) plus any uploaded database files.

SecretKey encrypts the secret-bearing parts of a saved profile — connection strings and SQLCipher keys — with AES-GCM. Either a base64 32-byte key or a passphrase.

Set SecretKey out of band for any shared deployment

With no key configured, a random one is generated next to the database it protects. That guards against a stray backup or synced folder, but not against anyone who can read the data directory.

Connections handed over by a host are never written to that store at all — they live in memory for as long as the process does.

ReadOnly blocks every write path for every host-provided connection, which is the setting you want whenever the tool is pointed at something you didn’t create five minutes ago.

Safety

Mark a connection read-only and every write path is blocked, including non-SELECT statements in the SQL console. Deleting a connection or bulk-deleting documents takes two clicks. Passwords are masked wherever a connection string is displayed.

Blob bytes come from whoever wrote the document, so serving them from our own origin is a real XSS surface. Two rules keep it closed: every response carries nosniff and a default-src 'none' CSP, and anything not on the short raster-image allowlist is sent as an attachment rather than rendered. SVG is excluded from inline display on purpose — it’s a document format that can carry script, not merely an image.

Writes to a temporal-mapped type record a version, using the provider’s own history SQL and stamped with the actor shiny-docdb-myadmin. This is not optional bookkeeping: the admin layer writes SQL directly — it sits below IDocumentStore because it has no CLR type to bind to — so none of the library’s temporal tracking runs, and without it an edit made here would change the row while the history sidecar went on insisting the old body was current. A quietly wrong audit trail is worse than no History tab at all. Clear is the one exception, matching the library: a bulk delete is not tracked.

The SQL console is an open prompt

There is no statement allow-list. Give the tool a database account with the privileges you actually want it to have.
