Fab & FabMenu

A Material Design-inspired floating action button (Fab) and a multi-action menu (FabMenu) that animates up from a main FAB with a staggered reveal. Each action supports Icon, Text, and Command, plus full color and border customization.

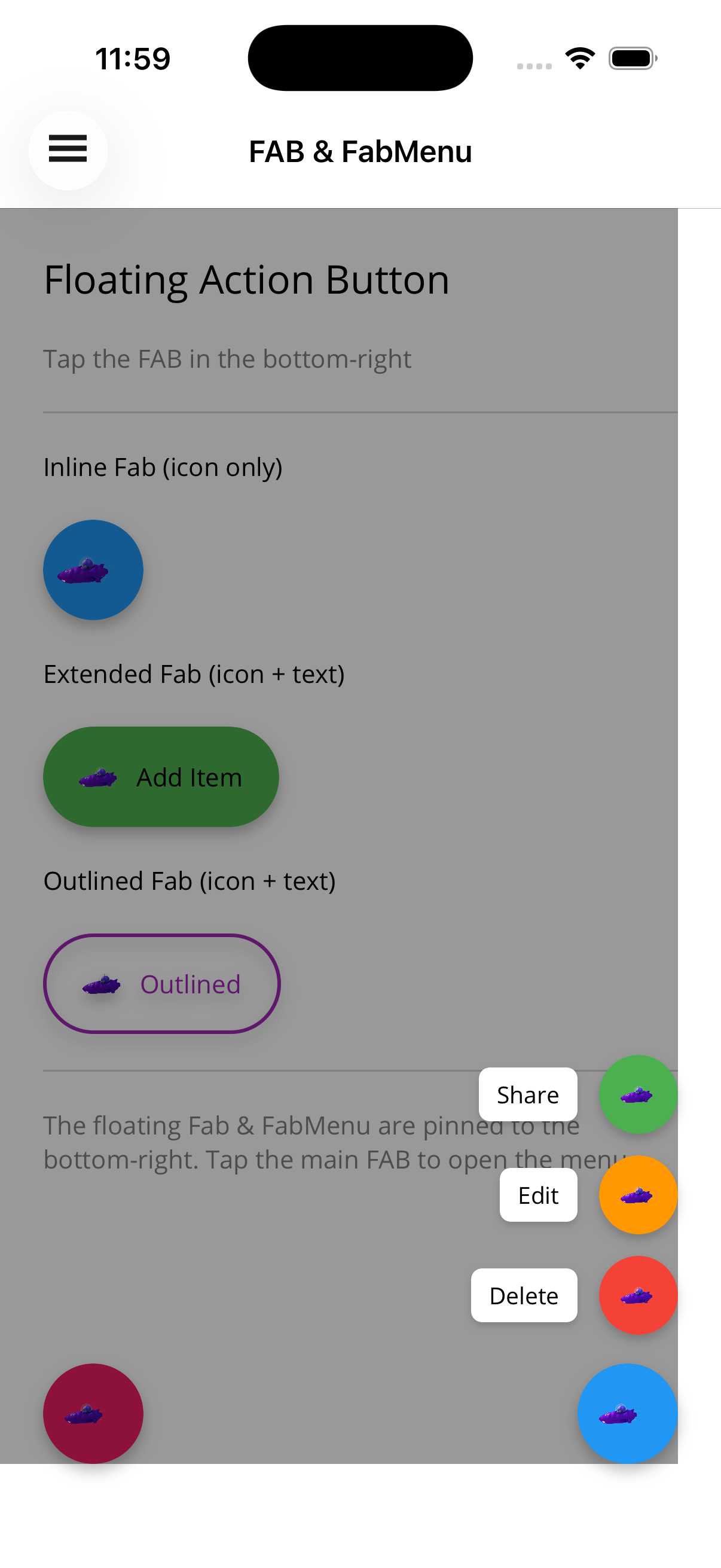

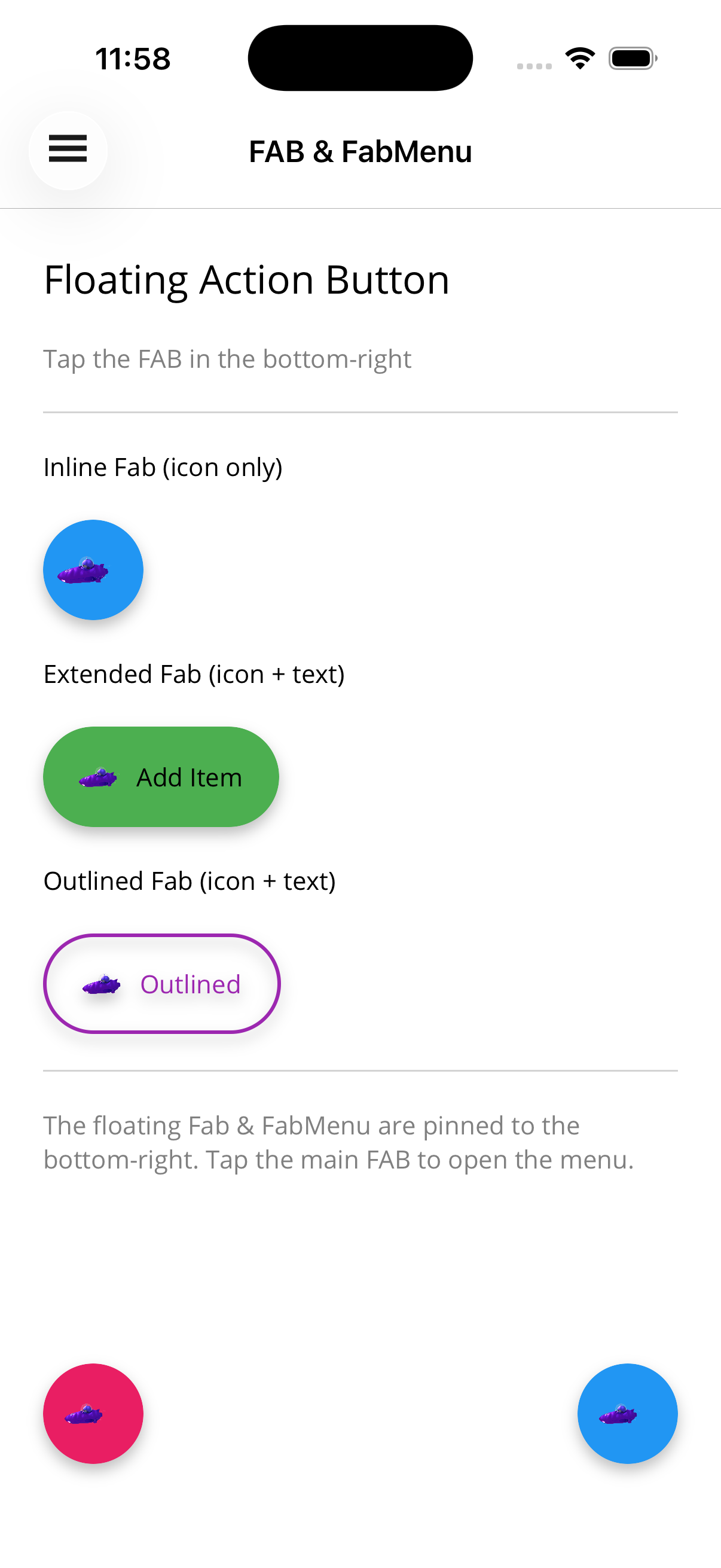

Closed	Menu Open

Fab

A single floating action button. Tap triggers Command (and fires the Clicked event).

<!-- Icon-only circular Fab -->
<shiny:Fab Icon="add.png"
           FabBackgroundColor="#E91E63"
           Command="{Binding AddCommand}"
           HorizontalOptions="End"
           VerticalOptions="End"
           Margin="24" />

<!-- Extended Fab with text -->
<shiny:Fab Icon="add.png"
           Text="Add Item"
           FabBackgroundColor="#4CAF50"
           TextColor="White"
           Command="{Binding AddCommand}"
           HorizontalOptions="End"
           VerticalOptions="End"
           Margin="24" />

<!-- Outlined Fab -->
<shiny:Fab Text="Save"
           FabBackgroundColor="Transparent"
           BorderColor="#9C27B0"
           BorderThickness="2"
           TextColor="#9C27B0"
           Command="{Binding SaveCommand}" />

Fab Properties

Property	Type	Default	Description
`Icon`	`ImageSource?`	`null`	Icon displayed inside the button
`Text`	`string?`	`null`	Optional label; when null the Fab is a perfect circle
`Command`	`ICommand?`	`null`	Executed on tap
`CommandParameter`	`object?`	`null`	Parameter forwarded to the Command
`FabBackgroundColor`	`Color`	`#2196F3`	Fill color
`BorderColor`	`Color?`	`null`	Outline stroke color
`BorderThickness`	`double`	`0`	Outline stroke thickness
`TextColor`	`Color`	`White`	Label text color
`FontSize`	`double`	`14`	Label font size
`FontAttributes`	`FontAttributes`	`None`	Label font attributes
`Size`	`double`	`56`	Height of the Fab (diameter when circular)
`IconSize`	`double`	`24`	Icon image size
`HasShadow`	`bool`	`true`	Drop shadow on/off

Events: Clicked.

FabMenu

A main Fab plus one or more FabMenuItem children that animate up (staggered) when the menu opens. IsOpen is two-way bindable.

<shiny:FabMenu IsOpen="{Binding IsMenuOpen}"
               Icon="plus.png"
               FabBackgroundColor="#2196F3"
               HorizontalOptions="End"
               VerticalOptions="End"
               Margin="24">
    <shiny:FabMenuItem Icon="share.png"
                       Text="Share"
                       FabBackgroundColor="#4CAF50"
                       Command="{Binding ShareCommand}" />
    <shiny:FabMenuItem Icon="edit.png"
                       Text="Edit"
                       FabBackgroundColor="#FF9800"
                       Command="{Binding EditCommand}" />
    <shiny:FabMenuItem Icon="delete.png"
                       Text="Delete"
                       FabBackgroundColor="#F44336"
                       Command="{Binding DeleteCommand}" />
</shiny:FabMenu>

Tapping the main Fab toggles IsOpen. Tapping a FabMenuItem executes its Command, raises ItemTapped, and (by default) closes the menu.

FabMenu Properties

In addition to all main-Fab pass-throughs (Icon, Text, FabBackgroundColor, BorderColor, BorderThickness, TextColor):

Property	Type	Default	Description
`IsOpen`	`bool`	`false`	Two-way bindable; opens/closes with animation
`Items`	`IList<FabMenuItem>`	empty	Content property — place items directly inside `<shiny:FabMenu>`
`HasBackdrop`	`bool`	`true`	Show dim backdrop behind the menu
`BackdropColor`	`Color`	`Black`	Backdrop color
`BackdropOpacity`	`double`	`0.4`	Backdrop peak opacity
`CloseOnBackdropTap`	`bool`	`true`	Close when backdrop tapped
`CloseOnItemTap`	`bool`	`true`	Close after item tap
`AnimationDuration`	`uint`	`200`	Duration (ms) of open/close animation

Events: ItemTapped(FabMenuItem). Methods: Open(), Close(), Toggle().

FabMenuItem

An action inside the menu — icon button plus side label.

FabMenuItem Properties

Property	Type	Default	Description
`Icon`	`ImageSource?`	`null`	Icon rendered inside the circular button
`Text`	`string?`	`null`	Side label
`Command`	`ICommand?`	`null`	Invoked on tap
`CommandParameter`	`object?`	`null`	Parameter forwarded to the Command
`FabBackgroundColor`	`Color`	`#2196F3`	Icon button fill
`BorderColor`	`Color?`	`null`	Icon button outline
`BorderThickness`	`double`	`0`	Icon button outline thickness
`TextColor`	`Color`	`Black`	Side-label text color
`LabelBackgroundColor`	`Color`	`White`	Side-label fill color
`FontSize`	`double`	`13`	Side-label font size
`Size`	`double`	`44`	Icon button diameter
`IconSize`	`double`	`20`	Icon image size

Events: Clicked.

Placement

Place Fab / FabMenu inside a Grid that fills the page — the same pattern used by BottomSheetView / ImageViewer — so the FabMenu’s backdrop can cover the main content.

<ContentPage>
    <Grid>
        <!-- Main page content -->
        <ScrollView>
            <!-- ... -->
        </ScrollView>

        <!-- Fab/FabMenu overlay on top -->
        <shiny:FabMenu IsOpen="{Binding IsMenuOpen}"
                       Icon="plus.png"
                       HorizontalOptions="End"
                       VerticalOptions="End"
                       Margin="24">
            <!-- items -->
        </shiny:FabMenu>
    </Grid>
</ContentPage>
